POS Shipping - Formsdef Based Shipping Header Input

1. Rover Data
2. ›Rover
3. ›Business Suite
4. ›Integrations
5. ›Formsdef
6. ›Pos Shipping Formsdef

9 min read

Table of Contents

• Overview
• Prerequisites
• Ship Submit Mode Options
  • MRK.CONTROL Properties for Ship Submit Modes
  • POSShipSubmitTypeItem Properties
  • Behavior Matrix
  • Sample MRK.CONTROL Response with Ship Submit Types
• Additional Shipping Information Form
  • Enabling the Additional Shipping Info Form
  • FORMSDEF Response
    • FORMSDEF Properties
    • FormsDefField Properties
    • Sample FORMSDEF GETRECORD Response
  • FDICT Response
    • Key FDICT Field Properties
    • Sample FDICT Response for SO File
• Ship Validate V2
  • FDICT SHIP Validate BP Items
  • Validation Flow
  • Sample Ship Validate Request
  • Sample Ship Validate Response
• Complete MRK.CONTROL Sample Response

Overview

This feature allows the POS shipping workflow to display a dynamic, host-driven form for collecting additional shipping header information before an order is shipped. The form is defined using the existing FORMSDEF system with a module of SALES, and is configured through the MRK.CONTROL response.

Additionally, the ship submit button on the Orders page can be configured with Quick Ship and Detailed Ship modes, allowing the host to control which shipping options are available to the user and which is the default.

Prerequisites

• The FDICT for the SHIP file must include a validate_bp_items entry with validate_ver of 2 to enable Ship Validate V2 capabilities (required for field-level validation on the additional shipping form).
• A FORMSDEF record must exist with the module set to SALES and enabled set to Y.
• The fields referenced in the FORMSDEF field_items must be defined in the FDICT for the file specified in the FORMSDEF file_name.

Ship Submit Mode Options

The MRK.CONTROL response can include a new property pos_ship_submit_type_items to control how the ship button is displayed on the Orders page. This allows the host to configure whether Quick Ship, Detailed Ship, or both are available, and which is the default action.

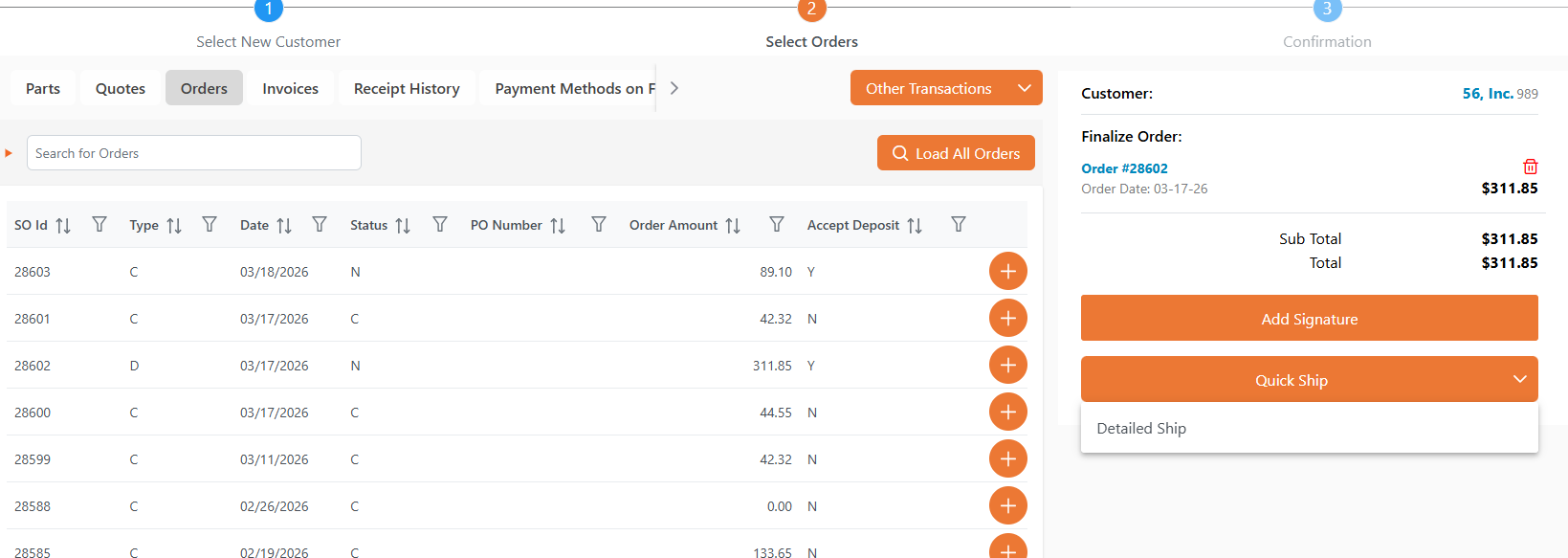

• Quick Ship — Submits the order immediately (same as the existing ship behavior).
• Detailed Ship — Navigates the user to the detailed shipping screen where line-level ship quantities and the additional shipping information form are displayed.

MRK.CONTROL Properties for Ship Submit Modes

Property	Type	Description
pos_ship_submit_type_items	Array	An array of POSShipSubmitTypeItem objects defining the available ship submit modes. If omitted or empty, both Quick Ship and Detailed Ship are enabled with Quick Ship as the default.

POSShipSubmitTypeItem Properties

Property	Type	Required	Description
pos_ship_submit_type	string	Yes	The label for the ship option. Must contain the word "quick" (case-insensitive) to map to Quick Ship mode, or "detail" to map to Detailed Ship mode. This label is displayed on the button.
ship_submit_enabled	string	Yes	Set to "Y" to enable this ship mode, or "N" to disable it.
ship_submit_default	string	Yes	Set to "Y" to make this the default ship action (the primary button label and click behavior). Only one item should be marked as default.

Behavior Matrix

Configuration	Result
No pos_ship_submit_type_items (property absent)	Both Quick Ship and Detailed Ship enabled; Quick Ship is default
Only Quick Ship enabled	Single "Quick Ship" button, no split button dropdown
Only Detailed Ship enabled	Single "Detailed Ship" button, navigates to shipping screen
Both enabled, Quick Ship is default	Split button: primary action is Quick Ship, dropdown contains Detailed Ship
Both enabled, Detailed Ship is default	Split button: primary action is Detailed Ship, dropdown contains Quick Ship

Sample MRK.CONTROL Response with Ship Submit Types

Sample JSON

[
  {
    "control_id": "MRK1",
    "pos_ship_submit_type_items": [
      {
        "pos_ship_submit_type": "Quick Ship",
        "ship_submit_enabled": "Y",
        "ship_submit_default": "Y"
      },
      {
        "pos_ship_submit_type": "Detailed Ship",
        "ship_submit_enabled": "Y",
        "ship_submit_default": "N"
      }
    ]
  }
]

Additional Shipping Information Form

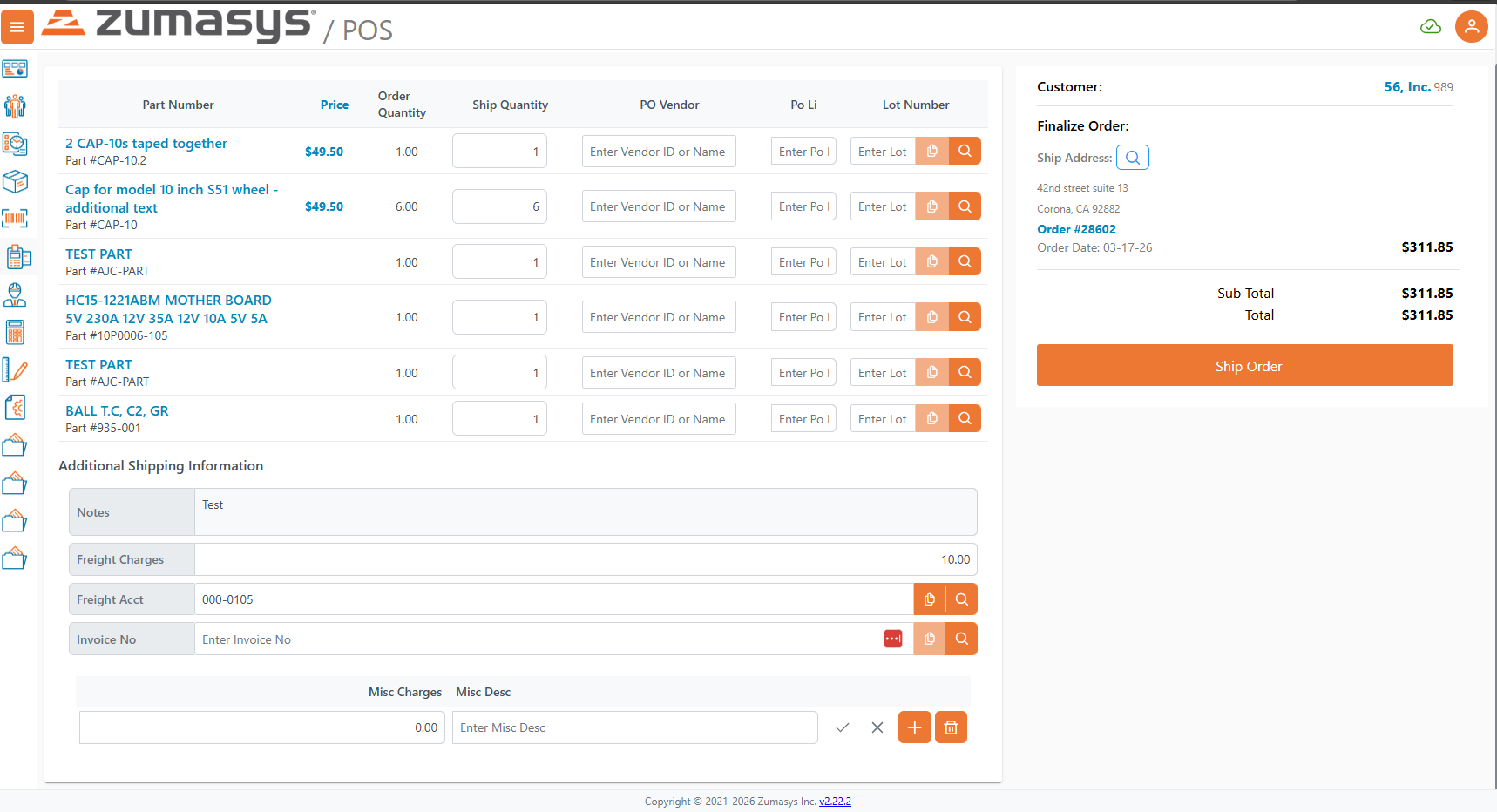

When a user navigates to the Detailed Ship screen, an additional form can be displayed below the shipment line items to collect extra shipping header information. This form is driven by a FORMSDEF definition with a module of SALES.

Enabling the Additional Shipping Info Form

To enable the additional shipping form, add the additional_shipping_info_formsdef property to the MRK.CONTROL response. The value is the form_id of the FORMSDEF record to use.

Property	Type	Description
additional_shipping_info_formsdef	string	The form_id of the FORMSDEF record that defines the additional shipping information form. When set, the form is fetched from FORMSDEF with module SALES and displayed on the Detailed Ship screen. If empty or omitted, no additional form is shown.

The form is displayed in compact mode below the shipment data table on the shipping screen. Field values are populated from the current sales order record and are merged into the ship request payload when submitting.

FORMSDEF Response

The FORMSDEF record defines which fields to display, their labels, default values, read-only state, and validation behavior. A GETRECORD request to the FORMSDEF file returns the form definition.

FORMSDEF Properties

Property	Type	Required	Description
form_id	string	Yes	Unique identifier for the form. This must match the value in additional_shipping_info_formsdef on MRK.CONTROL.
form_name	string	Yes	Display name for the form, shown as the section header.
enabled	string	Yes	Set to "Y" to enable the form. If not "Y", the form will not be displayed.
module	string	Yes	Must be "SALES" for shipping forms to be available in POS.
file_name	string	Yes	The data file that the form fields belong to (e.g., "SO"). The FDICT for this file will be fetched to resolve field definitions.
field_items	array	Yes	An array of FormsDefField objects defining each field to display.
process_type	string	No	The save behavior for the form (e.g., "SAVE").
sections_items	array	No	Optional grouping of fields into named sections.
tab_items	array	No	Optional tab definitions for multi-tab form layouts.
lookup	string	No	Optional lookup name associated with the form.

FormsDefField Properties

Each field in field_items maps to a dictionary item in the FDICT for the specified file_name.

Property	Type	Required	Description
field	string	Yes	The FDICT dictionary name (e.g., "SHIP.VIA", "SHIP.WEIGHT"). This must match a dict_name in the FDICT for the file_name.
label	string	No	Override label text. If omitted, the desc_items from the FDICT field definition is used.
read_only	string	No	Set to "Y" to make the field read-only.
hidden	string	No	Set to "Y" to hide the field from display.
default_val	string	No	Default value for the field. Supports special tokens like "@SD" (system date) and "@USER" (current user).
validate	string	No	Set to "Y" to enable field-level validation. Validation is triggered on enter or field blur. If either the FORMSDEF validate or the FDICT web_validate property is "Y", validation is enabled for that field.
section	string	No	Associates the field with a named section when sections_items is used.

Sample FORMSDEF GETRECORD Response

Request GETRECORD for FORMSDEF with id="SO.SHIP.ADDITIONAL.INFO"

Sample JSON

{
  "total_records_found": "1",
  "BlockSize": "50",
  "formsdef_items": [
    {
      "form_id": "SO.SHIP.ADDITIONAL.INFO",
      "enabled": "Y",
      "file_name": "SO",
      "field_items": [
        {
          "field": "SHIP.VIA"
        },
        {
          "field": "SHIP.WEIGHT",
          "validate": "Y"
        },
        {
          "field": "SHIP.ZONE"
        },
        {
          "field": "FREIGHT.AMT"
        },
        {
          "field": "TRACKING.NO"
        }
      ],
      "form_name": "Additional Shipping Information",
      "module": "SALES",
      "process_type": "SAVE"
    }
  ]
}

FDICT Response

The FDICT for the file referenced in file_name provides the field definitions, including data types, conversions, lengths, validation rules, and display names. The web client fetches the FDICT and uses it to properly render and validate each field in the form.

Key FDICT Field Properties

Property	Type	Description
field_no	string	The attribute number in the data file.
dict_name	string	The dictionary name. Must match the field value in the FORMSDEF field_items.
json_name	string	The JSON property name used in API payloads (auto-derived from dict_name, lowercased, dots replaced with underscores).
desc_items	array	Display description lines for the field label.
conv	string	Conversion code (e.g., "D2-" for dates, "MD2" for decimal, "MCU" for uppercase).
just	string	Justification: "L" (left), "R" (right), "T" (text).
len	string	Display length of the field.
web_validate	string	Set to "Y" to enable server-side validation when the field value changes. Works in conjunction with the FORMSDEF validate property — if either is "Y", validation is triggered.
required	string	Set to "Y" to make the field required.
reference_file	string	If set, indicates this field references another file for lookup/validation.
valid_value_items	array	An array of valid values with descriptions, used to render a dropdown selector.
boolean	string	Set to "Y" to render the field as a checkbox/toggle.
multi_line	string	Set to "Y" to render the field as a multi-line text area.
ignore_change	string	Set to "Y" to exclude the field from change tracking.
index	string	Set to "Y" if the field is indexed.

Sample FDICT Response for SO File

The FDICT must include definitions for each field referenced in the FORMSDEF field_items.

Sample JSON

{
  "total_records_found": "1",
  "BlockSize": "50",
  "fdict_items": [
    {
      "file_name": "SO",
      "field_no_items": [
        {
          "field_no": "0",
          "conv": "MCU",
          "dict_name": "SO.ID",
          "desc_items": [
            {
              "desc": "So.Id"
            }
          ],
          "just": "R",
          "len": "10",
          "reference_file": "SO"
        },
        {
          "field_no": "15",
          "dict_name": "SHIP.VIA",
          "desc_items": [
            {
              "desc": "Ship"
            },
            {
              "desc": "Via"
            }
          ],
          "just": "L",
          "len": "20",
          "web_validate": "N"
        },
        {
          "field_no": "40",
          "conv": "MD2",
          "dict_name": "SHIP.WEIGHT",
          "desc_items": [
            {
              "desc": "Ship"
            },
            {
              "desc": "Weight"
            }
          ],
          "just": "R",
          "len": "10",
          "web_validate": "Y"
        },
        {
          "field_no": "41",
          "dict_name": "SHIP.ZONE",
          "desc_items": [
            {
              "desc": "Ship"
            },
            {
              "desc": "Zone"
            }
          ],
          "just": "L",
          "len": "5",
          "web_validate": "N"
        },
        {
          "field_no": "42",
          "conv": "MD2",
          "dict_name": "FREIGHT.AMT",
          "desc_items": [
            {
              "desc": "Freight"
            },
            {
              "desc": "Amount"
            }
          ],
          "just": "R",
          "len": "12",
          "web_validate": "N"
        },
        {
          "field_no": "43",
          "dict_name": "TRACKING.NO",
          "desc_items": [
            {
              "desc": "Tracking"
            },
            {
              "desc": "Number"
            }
          ],
          "just": "L",
          "len": "30",
          "web_validate": "N"
        }
      ],
      "file_title": "Sales Order File",
      "validate_bp_items": [
        {
          "validate_bp": "P$VALIDATESO",
          "validate_ver": "1",
          "validate_type": "1"
        }
      ]
    }
  ]
}

Ship Validate V2

For field-level validation on the additional shipping form to function, the SHIP file FDICT must advertise validate version 2 capability. The web client checks for this before sending validation requests.

FDICT SHIP Validate BP Items

The SHIP file FDICT response must include a validate_bp_items entry with validate_ver of 2:

{
  "fdict_items": [
    {
      "file_name": "SHIP",
      "validate_bp_items": [
        {
          "validate_bp": "P$VALIDATESHIP",
          "validate_ver": "2",
          "validate_type": "2"
        }
      ]
    }
  ]
}

When the SHIP validate V2 feature is detected, the web client sends ship requests to the V2/ship endpoint instead of the standard ship endpoint. Additionally, field-level validation requests are sent when a user modifies a field that has web_validate set to "Y" (in FDICT) or validate set to "Y" (in FORMSDEF).

Validation Flow

1. User modifies a field on the additional shipping form.
2. The web client checks if the field has validation enabled (from FDICT web_validate or FORMSDEF validate).
3. If validation is enabled, the web client builds a ship record containing the current order header fields plus the additional shipping info fields.
4. A validation request is sent to the ship validate endpoint with the new record, old record, and the validate_reason (the dictionary name of the changed field).
5. The host validates the record and returns a response. If the response contains a record, the validated field values are merged back into the form.

Sample Ship Validate Request

Sample JSON

{
  "record": {
    "ship_name": "Evans Supplies",
    "ship_addr_items": [
      {
        "ship_addr": "123 Main St"
      }
    ],
    "ship_city": "Irvine",
    "ship_state": "CA",
    "ship_zip": "92618",
    "ship_country": "US",
    "ship_attn": "John Smith",
    "ship_comm": "",
    "ship_phone": "555-0100",
    "ship_via": "UPS",
    "ship_weight": "15.50",
    "ship_zone": "5",
    "freight_amt": "12.50",
    "tracking_no": ""
  },
  "oldRecord": {
    "ship_name": "Evans Supplies",
    "ship_addr_items": [
      {
        "ship_addr": "123 Main St"
      }
    ],
    "ship_city": "Irvine",
    "ship_state": "CA",
    "ship_zip": "92618",
    "ship_country": "US",
    "ship_attn": "John Smith",
    "ship_comm": "",
    "ship_phone": "555-0100",
    "ship_via": "UPS",
    "ship_weight": "10.00",
    "ship_zone": "",
    "freight_amt": "",
    "tracking_no": ""
  },
  "metaData": {
    "validate_reason": "SHIP.WEIGHT"
  },
  "ReturnRecord": "Y"
}

Sample Ship Validate Response

Sample JSON — Success with updated fields

{
  "response": {
    "status": "success",
    "record": {
      "ship_name": "Evans Supplies",
      "ship_addr_items": [
        {
          "ship_addr": "123 Main St"
        }
      ],
      "ship_city": "Irvine",
      "ship_state": "CA",
      "ship_zip": "92618",
      "ship_country": "US",
      "ship_attn": "John Smith",
      "ship_comm": "",
      "ship_phone": "555-0100",
      "ship_via": "UPS",
      "ship_weight": "15.50",
      "ship_zone": "5",
      "freight_amt": "18.75",
      "tracking_no": ""
    }
  }
}

Sample JSON — Validation failure

{
  "response": {
    "status": "failed",
    "error": "Ship weight exceeds maximum allowed for selected shipping method."
  }
}

Complete MRK.CONTROL Sample Response

A complete MRK.CONTROL response including both ship submit type configuration and the additional shipping info formsdef reference:

Sample JSON

[
  {
    "control_id": "MRK1",
    "pos_ship_submit_type_items": [
      {
        "pos_ship_submit_type": "Quick Ship",
        "ship_submit_enabled": "Y",
        "ship_submit_default": "Y"
      },
      {
        "pos_ship_submit_type": "Detailed Ship",
        "ship_submit_enabled": "Y",
        "ship_submit_default": "N"
      }
    ],
    "additional_shipping_info_formsdef": "SO.SHIP.ADDITIONAL.INFO",
    "pos_allow_partial_shipments": "Y",
    "pos_partial_ship_field_items": [
      {
        "pos_partial_ship_field": "46"
      },
      {
        "pos_partial_ship_field": "101"
      }
    ],
    "pos_require_ship_signature": "Y",
    "post_invoice_on_ship": "Y",
    "auto_load_ship_qty": "Y"
  }
]

---
