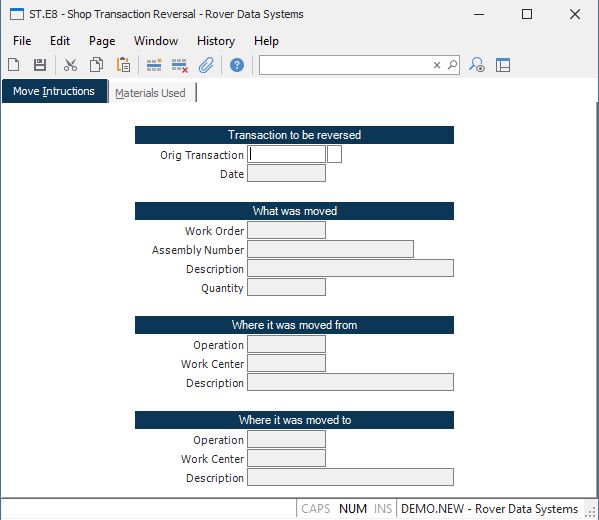

# Shop Transaction Reversal (ST.E8)

Read Time: 1 minute(s)

# Move Intructions

Shop Transaction ID The shop transaction ID does not appear on the screen and is assigned to each item entered when it is processed after filing.

Orig Trans Enter the number of the original transaction you want to reverse.

Trans Date Displays the date on which the original transaction was posted.

Work Order Work order number affected by the transaction.

Assembly Number This field contains the assembly number for the work order. It is displayed for reference only and cannot be changed.

Description Contains the description of the assembly for the work order entered. This data is displayed for information only and may not be changed.

Quantity The quantity of items moved.

From Oper The operation from which the items were moved.

From Work Center The from work center ID is loaded in this field when a from operation is entered. The work center ID is retrieved from the routing for the work order based on the operation number.

From Description Contains the description of the from operation for the work order entered. This data is displayed for information only and may not be changed.

To Oper The operation to which the items were moved. The operation number must match one of the operations listed in the routing for the work order.

To Work Center The to work center ID is loaded in this field when a to operation is entered. The work center ID is retrieved from the routing for the work order based on the operation number.

To Description Contains the description of the to operation for the work order entered. This data is displayed for information only and may not be changed.

Version 8.10.57
