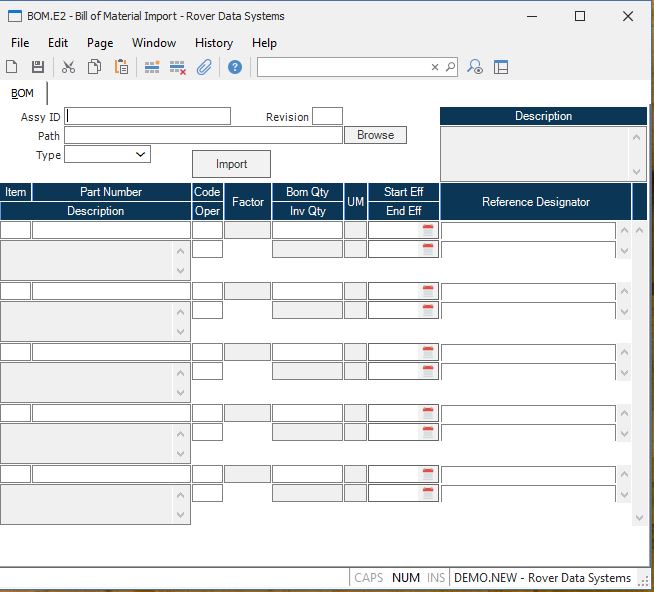

# Bill of Material Import (BOM.E2)
Read Time: 5 minute(s)
# BOM
Assy Enter the part number which identifies this bill of material record. The part number must already exist on the PARTS file.
Rev Enter the revision level associated with this bill of material. The revision is initially loaded from the PARTS file, but may be changed in this procedure. If changed the new revision will be written to the associated PARTS file record.
Path Enter the path to the record containing the import data for the BOM. This is the path to a Windows file, as seen from the client PC.
Type Enter the incoming record type.
Item Enter the line item number for this position. The line item number should correspond to the item number on the engineering parts list and may be any integer number between 0 and 999.
Part Enter the part number of the component or assembly for this line item. You may also leave this field blank if the associated line item is a reference line. If you do enter a part number it must already be present on the PARTS file.
Description Contains the first line of the description of the associated part number. It is shown on the screen for reference only and may not be changed.
Code Enter one of the following codes which defines the designation for this part number in reference to this bill of material. The code is initially defaulted from the PARTS file record for the associated part number, but may be changed as required. Subsequent changes to the code in the PARTS file do not affect the bill of material record, however the BOM.P1 procedure is available to reset all type codes equal to the code in the PARTS file. The available codes are...
C - Component part from stock.
A - Completed assembly from stock.
P - Assembly whose components will be pulled
from stock.
L - Line stock.
- Comment line.
Backflush Oper If material backflush is used in the production process you have the option of specifying when individual items on the bill of material are to be consumed. Enter the letter "F" if the part number is to be consumed when the assembly is moved from the first step in the routing. Enter "L" if it should be consumed when items are moved from the last step in the routing (typically when the assembly is finished). Enter "P" if you want to pull this part via the picker before the first operation. Or enter the specific operation number in the routing from which the part number should be consumed when assemblies are moved through it. If you leave this field blank or it is set to something other than the codes described or a valid operation in the routing the letter "L" will be assumed. These settings do not have any affect unless the work order is designated as a backflush order.
Bom UM Factor This is the BOM U/M factor from the parts master. It is shown for reference only and may not be changed. It is used in conjunction with the Bill of Material quantity to convert to the stocking unit of measure quantity. The factor is divided into the BOM quantity to calculate the stock quantity. If no factor is defined, then the stock quantity is the same as the BOM quantity.
Bom Qty Enter the quantity required of this item for each assembly. The entry may contain up to 4 decimal places, and must be greater than or equal to zero. If a negative number is entered the work order picking and backflush operations will treat the associated part as a return to stock item, moving the item from the WIP location back to stock rather than the normal stock to WIP movement. Negative entries will also affect the standard cost rollup by reducing their value from the total for the parent assembly.
BOM U/M Contains the bill of material unit of measure for the associated part number. It is shown here for reference only and may not be changed.
Quantity This is the quantity in inventory unit of measure. It is for information only and is calculated using the BOM quantity entered divided by the BOM U/M factor as displayed from the PARTS file.
Inv U/M Contains the stocking unit of measure for the associated part number. It is shown here for reference only and may not be changed.
Start Date If the associated part number is to become effective on a specified date then enter that date in this field, otherwise leave this field blank. For example, if you were changing to a new part number on 6-30-2006 you would enter 6-29-2006 in the end effectivity date field for the old part number line and enter 6-30-2006 in the start effectivity field on the new part number line. Procedures such as MRP and work order picklist creation will check this date to determine if the part should be included in processing.
End Date If the associated part number is not to be used after a specified date then enter that date in this field, otherwise leave this field blank. For example, if you were changing to a new part number on 6-30-2006 you would enter 6-29-2006 in the end effectivity date field for the old part number line and enter 6-30-2006 in the start effectivity field on the new part number line. Procedures such as MRP and work order picklist creation will check this date to determine if the part should be included in processing.
Ref.Des Enter any reference designation information applicable to this part.
Desc Contains the first line of the description from the associated parts master record. It may not be changed in this procedure.
Browse Click on this button to use your Windows browser to select the record.
Import Click this button to import the data onto the screen.
Version 8.10.57
