# POS Aged Credit Sample
Read Time: 26 minute(s)
# Table of Contents
- Enabling Point of Sale Payment Validation
- Invoices Lookup

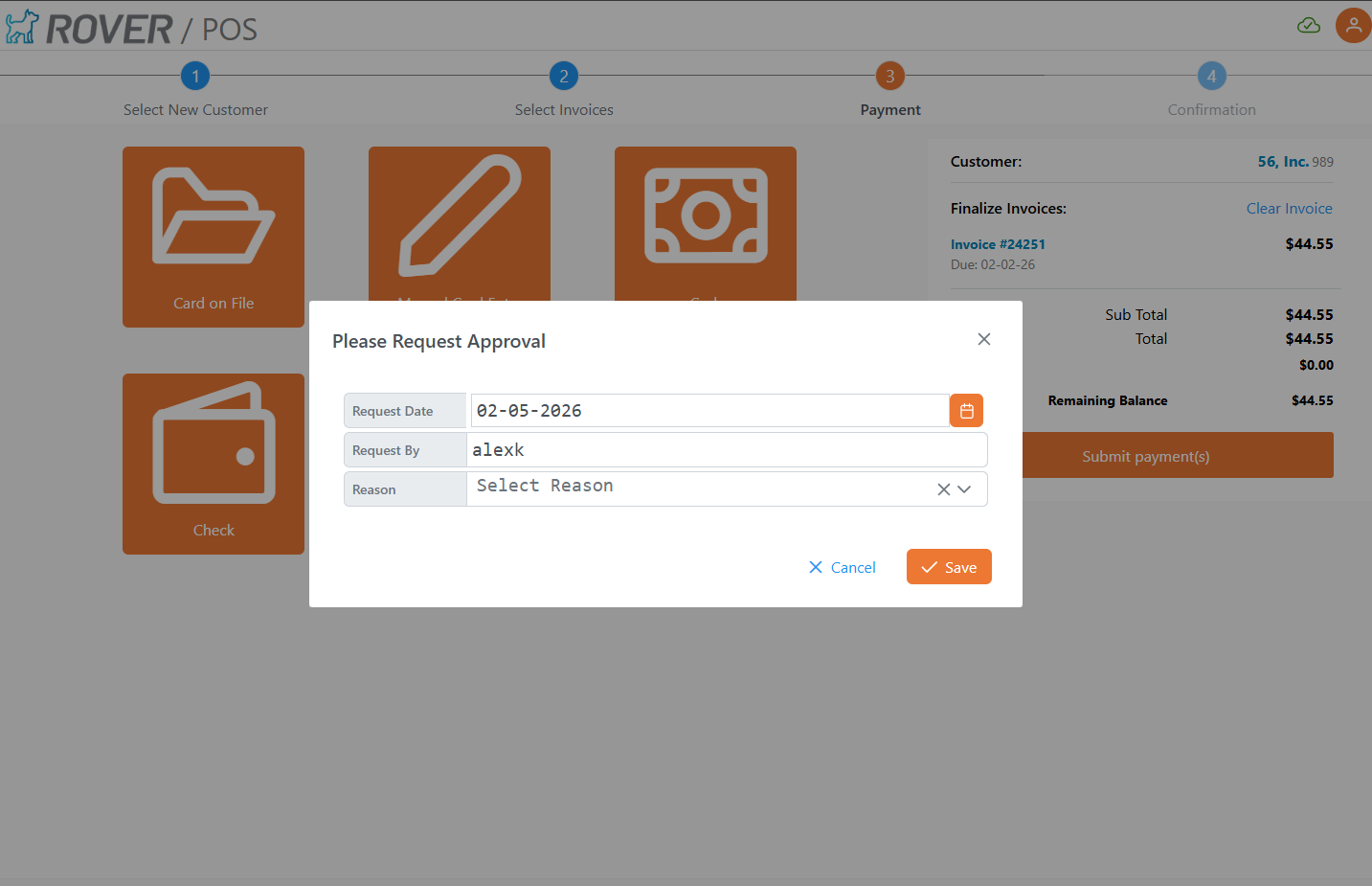

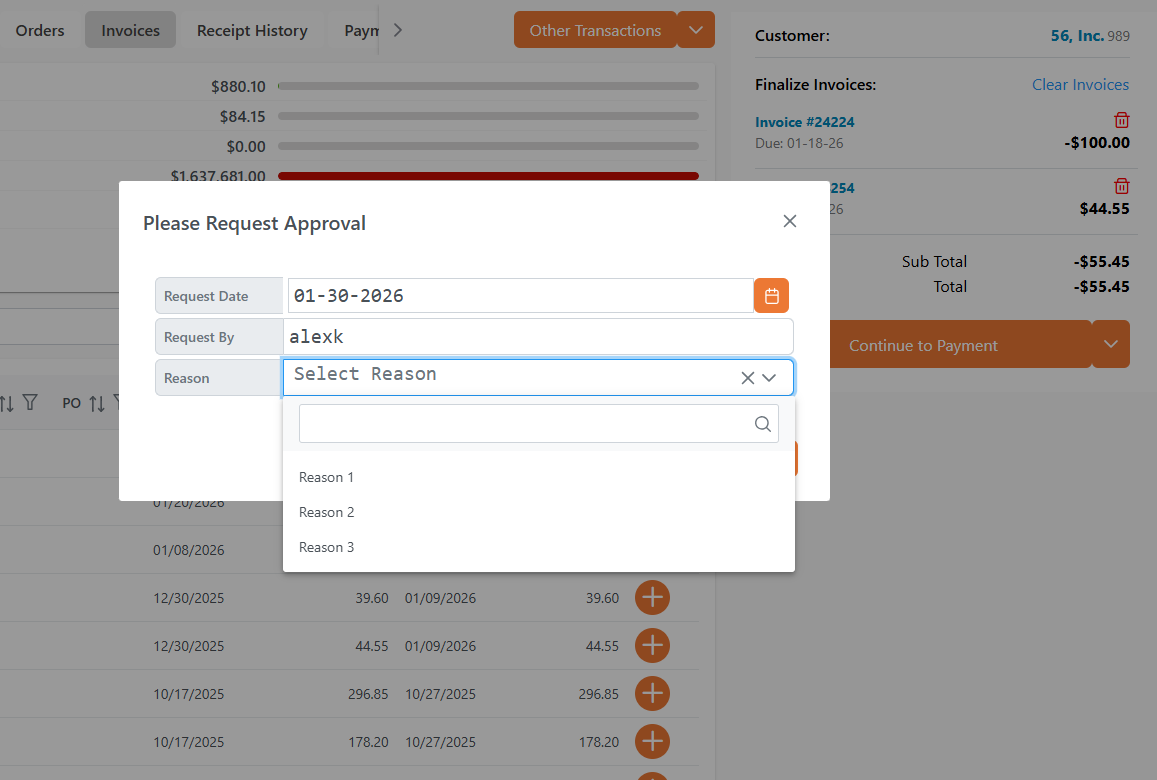

- Displaying a Formsdef form from Validation Response

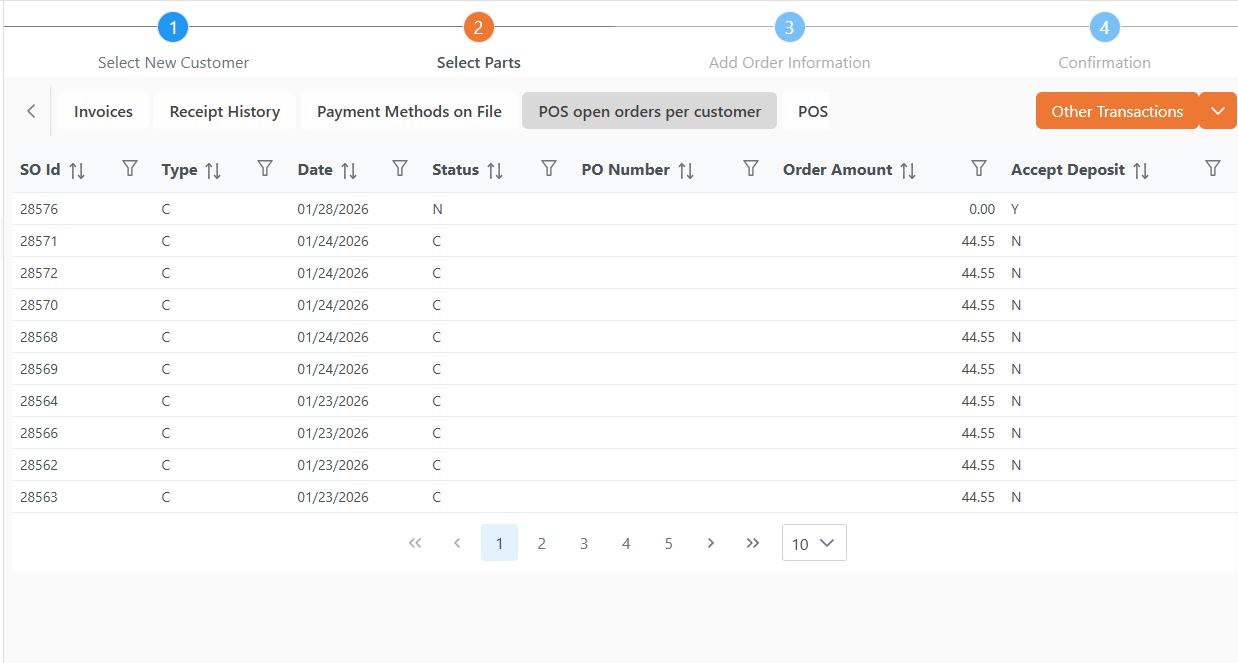

- Lookup display tabs in POS
- Display Pending Approval Link in Accounting
# Enabling Point of Sale Payment Validation
The CASH file FDICT response needs to include a new section validate_bp_items. This section is an array of items, it must contain an item with validate_ver of 2.
# Sample
JSON Example
{
"total_records_found": "1",
"BlockSize": "50",
"fdict_items": [
{
"file_name": "CASH",
"allow_history": "Y",
"field_no_items": [
{
"field_no": "0",
"conv": "MCU",
"dict_name": "CASH.ID",
"desc_items": [
{
"desc": "Cash.Id"
}
],
"just": "R",
"len": "6",
"reference_file": "CASH"
},
{
"field_no": "1",
"conv": "MCU",
"dict_name": "CUST",
"desc_items": [
{
"desc": "Cust"
}
],
"just": "L",
"index": "Y",
"len": "10",
"reference_file": "CUST"
},
{
"field_no": "2",
"conv": "D2-",
"dict_name": "POST.DATE",
"desc_items": [
{
"desc": "Post"
},
{
"desc": "Date"
}
],
"just": "R",
"len": "8"
},
{
"field_no": "3",
"dict_name": "CHECK",
"desc_items": [
{
"desc": "Check"
},
{
"desc": "Number"
}
],
"just": "R",
"index": "Y",
"len": "15"
},
{
"field_no": "4",
"conv": "MD2",
"dict_name": "CHECK.AMOUNT",
"desc_items": [
{
"desc": "Check.Amount"
}
],
"just": "R",
"len": "13"
},
{
"field_no": "5",
"dict_name": "NOTES",
"desc_items": [
{
"desc": "Notes"
}
],
"just": "T",
"len": "25"
},
{
"field_no": "6",
"conv": "D2-",
"dict_name": "STAMP.DATE",
"desc_items": [
{
"desc": "Stamp"
},
{
"desc": "Date"
}
],
"just": "R",
"ignore_change": "Y",
"len": "8"
},
{
"field_no": "7",
"dict_name": "STAMP.ID",
"desc_items": [
{
"desc": "Stamp"
},
{
"desc": "Id"
}
],
"just": "L",
"ignore_change": "Y",
"len": "15"
},
{
"field_no": "8",
"conv": "MCU",
"dict_name": "CASH.ACCOUNT",
"desc_items": [
{
"desc": "Cash"
},
{
"desc": "Account"
}
],
"just": "R",
"ignore_change": "N",
"len": "12",
"reference_file": "GLCHART"
}
],
"correl_field_no_items": [
{
"correl_field_no": "1",
"correl_desc": "Name",
"correl_dict_id": "CUST.NAME",
"correlative": "TCUST;X;;1",
"correl_just": "L",
"correl_len": "30",
"correl_rw_ok": "Y"
},
{
"correl_field_no": "0",
"correl_desc": "Inv.Amount",
"correl_conv": "MD2",
"correl_dict_id": "INV.AMT",
"correlative": "F12üTAR;X;;6",
"correl_just": "R",
"correl_len": "12",
"correl_rw_ok": "Y"
}
],
"file_title": "Cash Payment File",
"lookup_name_items": [],
"file_view_name_items": [],
"validate_bp_items": [
{
"validate_bp": "P$VALIDATECASH",
"validate_ver": "1",
"validate_type": "1"
},
{
"validate_bp": "P$VALIDATECASH.V2",
"validate_ver": "2",
"validate_type": "2"
}
]
}
]
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176

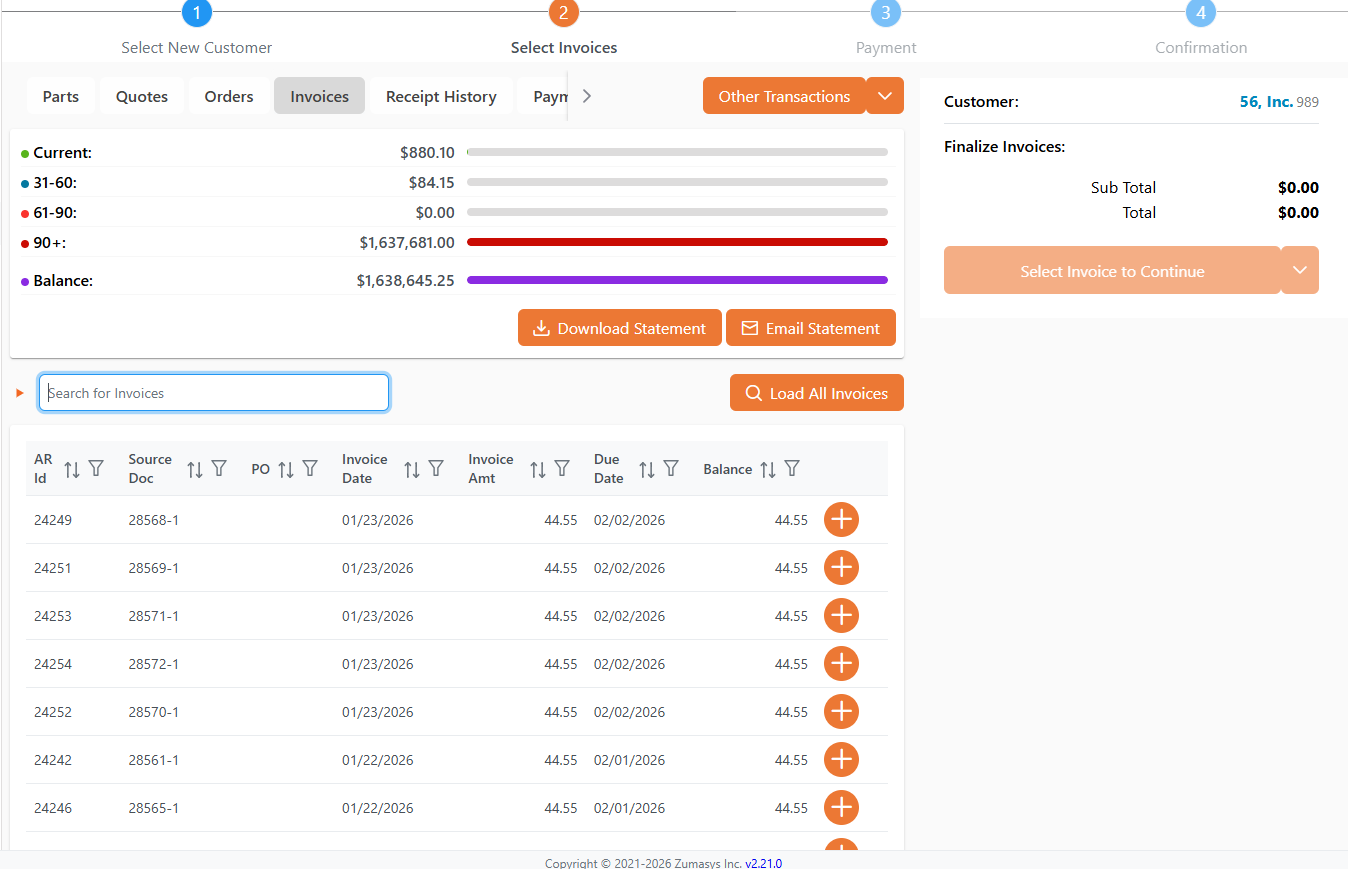

# Invoices Lookup
Lookups provide a means of displaying host-controlled data tables in Web, allowing the ERP backend to determine what columns are displayed, what file to search, and what query to run. The API Gateway does not create a select statement.
A lookup request is sent to the /Lookup endpoint on the host.
To enable the use of a lookup data table to display in the Invoices section of POS, provide a new property on MRK control responses pos_customer_invoices_lookup
# Sample MRK response
Sample Json
[
{
"control_id": "MRK1",
"cg_location": "CG",
"auto_set_ship_date": "N",
"assign_invoice_(how)": "S",
"allocate_shipments": "Y",
"accounting_orders_lookup": "SO*ON.HOLD",
"accounting_orders_lookup_desc": "Orders on hold",
"alloc_multiple_locations": "Y",
"accounting_release_items": [
{
"accounting_release": "RON"
},
{
"accounting_release": "VERN"
},
{
"accounting_release": "CATHIEM"
},
{
"accounting_release": "BONNIE"
},
{
"accounting_release": "CHRISTIANO"
}
],
"allocation_sequence": "1",
"allow_po_creation": "Y",
"allow_customer_creation": "Y",
"allow_mixed_mode": "Y",
"apply_cm_to_open_order": "Y",
"assign_invoice_(when)": "S",
"assign_invoice_(with)": "L",
"auto_generate_ship": "N",
"auto_create_wo": "P",
"auto_create_sub-assembly_wo": "Y",
"auto_load_ship_qty": "Y",
"auto_process_rma_terms_document": "CUST",
"backorder_so": "ENTRY",
"breakout_tax": "N",
"cart_field_validation": "Y",
"commit_range": "999",
"fg_location": "FG",
"explode_phantoms": "Y",
"display_atp": "0",
"default_taxable_flag": "N",
"default_cust_terms": "AR",
"default_apply_overage_to_account": "N",
"customer_inquiry_lookup": "CUST*POS.CUST2",
"customer_inquiry_recently_viewed_lookup": "Y",
"default_image": "https://prodroverstorage.blob.core.windows.net/rover/icon-120x120-1.png",
"disable_downloading_statements": "N",
"disable_emailing_statements": "N",
"disable_updating_part_description": "N",
"display_inv": "0",
"display_credit_memos": "N",
"fet_account:": "000-0736F",
"fob_dest": "Irvine",
"filter_inactive_customers": "N",
"freight_acct#": "000-0930",
"misc_acct#": "TARIFF",
"log_serials": "Y",
"load_customer_notes": "Y",
"hide_pos_notes": "N",
"hide_load_customer_button": "N",
"hide_drafted_orders": "N",
"gppct_and_cost": "Y",
"gppct_cost_type": "Avg",
"hide_parts_tab": "N",
"hide_order_buttons": "Y",
"hide_po_no": "N",
"hide_use_new_address": "N",
"hold_code_items": [
{
"hold_code": "C",
"hold_code_description": "Credit"
},
{
"hold_code": "E",
"hold_code_description": "Engineering HOLD LONG DES"
},
{
"hold_code": "W",
"hold_code_description": "Web Hold"
}
],
"manually_load_orders": "N",
"manually_load_invoices": "N",
"sales_acct#": "000-1000",
"required_date_offset": "1",
"pos_price_strategy": "P",
"order_information_precedes_create_order": "N",
"order_header_shipto_display": "Top",
"pos_allow_partial_shipments": "Y",
"pos_allow_non_stock_parts": "Y",
"pos_allow_cash_deposit": "Y",
"part_cart_update_mode": "Y",
"pos_allow_coupons": "Y",
"pos_allow_payout": "Y",
"pos_allow_shipto_override": "N",
"pos_allow_refund": "Y",
"pos_maintain_cart_sort": "Y",
"pos_force_same_part_qty_increment": "N",
"pos_clear_category_on_search": "Y",
"pos_cc_pin_pad": "T",
"pos_auto_validate": "Y",
"pos_customer_orders_lookup": "SO*POS.CUST.OPEN",
"pos_cust_soquote_lookup": "SOQUOTE*POS.CUST.LOOKUP",
"pos_collapse_part_option_groups": "Y",
"pos_customer_invoices_lookup": "AR*POS.CUSTOMER",
"pos_disable_check_payout": "Y",
"pos_extra_info_items": [
{
"pos_extra_info": "15"
},
{
"pos_extra_info": "7"
},
{
"pos_extra_info": "10"
},
{
"pos_extra_info": "9"
}
],
"pos_host_receipt_print": "Y",
"pos_hide_invoices_ar_kpi": "N",
"pos_lazy_load_shiptos": "N",
"pos_inv_lookups_items": [
{
"pos_inv_lookups": "SO*PART.ALL",
"inv_lookup_desc": "SO PART"
},
{
"pos_inv_lookups": "FORECAST*ALL",
"inv_lookup_desc": "Forecast Listing"
},
{
"pos_inv_lookups": "PO*PARTS.OPEN",
"inv_lookup_desc": "Lookup Open POs for a Part Number"
},
{
"pos_inv_lookups": "RMA*PARTS.OPEN",
"inv_lookup_desc": "Open Items for a Part Number Lookup"
},
{
"pos_inv_lookups": "IT*PART.NUMBER",
"inv_lookup_desc": "Part Number Lookup"
},
{
"pos_inv_lookups": "SHIP*Open Shipments",
"inv_lookup_desc": "List All Un-Confirmed Shipments"
},
{
"pos_inv_lookups": "AR*HOLD.LOOKUP",
"inv_lookup_desc": "Lookup Open Items on Hold"
},
{
"pos_inv_lookups": "ARR*CUST.OPEN",
"inv_lookup_desc": "Open ARR Listing by Customer"
},
{
"pos_inv_lookups": "PRICE*STD.PRICE",
"inv_lookup_desc": "Standard Price"
},
{
"pos_inv_lookups": "SO*PART.ALL",
"inv_lookup_desc": "Part Number Lookup for All Orders"
}
],
"pos_parts_lookup": "PARTS*POS.PARTS",
"pos_order_code_items": [
{
"pos_order_code": "A",
"default_selection": "Y",
"pos_order_desc": "Ship",
"so_type_code": "C",
"ship_via_code": "03"
},
{
"pos_order_code": "B",
"default_selection": "N",
"pos_order_desc": "Will Call",
"so_type_code": "C",
"ship_via_code": "UPS BLUE"
},
{
"pos_order_code": "C",
"default_selection": "N",
"pos_order_desc": "Delivery",
"so_type_code": "D",
"ship_via_code": "02",
"signature_required": "Y"
},
{
"pos_order_code": "D",
"pos_order_desc": "Test",
"so_type_code": "C",
"ship_via_code": "UPS Worldwide Expedited"
}
],
"pos_part_status_items": [
{
"pos_part_status": "A"
},
{
"pos_part_status": "C"
},
{
"pos_part_status": "P"
}
],
"pos_partial_ship_field_items": [
{
"pos_partial_ship_field": "46"
},
{
"pos_partial_ship_field": "101"
},
{
"pos_partial_ship_field": "104"
},
{
"pos_partial_ship_field": "201"
}
],
"prompt_on_price_override": "Y",
"post_invoice_on_ship": "Y",
"pos_show_pay_terms": "Y",
"pos_show_book_date": "N",
"pos_require_price_change_reason": "N",
"pos_require_entry_user_authentication": "N",
"pos_register_selection_mode": "U",
"pos_require_ship_signature": "Y",
"pos_rma_refund": "N",
"pos_show_freight_amount": "Y",
"pos_show_edit_order": "Y",
"pos_show_category_filter": "Y",
"pos_show_order_status": "N",
"pos_show_keyword_search": "Y",
"pos_show_invoice_print": "Y",
"pos_show_order_confirmation_page": "N",
"pos_show_opp_tab": "Y",
"pos_show_orders_tab": "Y",
"pos_show_part_cost_column": "Y",
"pos_show_tax_codes": "Y",
"pos_show_ship_via": "Y",
"pos_show_sales_rep": "Y",
"pos_show_ship_id": "Y",
"pos_terms_require_payment": "Y",
"pos_skip_calc_tax": "Y",
"pos_soquote_lookup": "SOQUOTE*POS.LOOKUP",
"prohibit_open_po_shipments": "N",
"require_customer_parts_search": "N",
"sched_days": "30",
"schedule_horizon": "999",
"update_atp": "N",
"search_using_parts": "N",
"show_pick_ticket_print": "Y",
"skip_close_out_report": "Y",
"show_soquote_tab": "Y",
"suppress_invoice_parts": "Y",
"tariff_pct": "10.00",
"type_items": [
{
"type": "VISA",
"rma_receipt_location": "MRB",
"rma_cg_location": "CG",
"account_number": "VISA-ACCR",
"rma_freight_account": "000-0930",
"rma_credit": "Y",
"rma_sales_account": "000-0900",
"rma_type_description": "Warranty Repair",
"wo_type": "WR"
},
{
"type": "MC",
"rma_receipt_location": "MRB",
"rma_cg_location": "CG",
"account_number": "MC-ACCR",
"rma_freight_account": "000-0940",
"rma_sales_account": "000-0930",
"rma_type_description": "Billable Repair",
"wo_type": "BR"
},
{
"type": "DEFAULT",
"rma_receipt_location": "SCRAP",
"rma_cg_location": "CG",
"account_number": "000-0104",
"rma_freight_account": "000-0940",
"rma_credit": "Y",
"rma_sales_account": "000-0930",
"rma_type_description": "Scrap & Credit"
},
{
"type": "DISC",
"account_number": "000-0104"
},
{
"type": "AMEX",
"account_number": "000-0104"
}
],
"use_lookup_for_recently_viewed": "N",
"use_gm_pct": "N",
"valid_so_type_items": [
{
"valid_so_type": "R",
"so_type_code_description": "Return"
},
{
"valid_so_type": "W",
"so_type_code_description": "Wholesale"
},
{
"valid_so_type": "D",
"so_type_code_description": "Domestic"
},
{
"valid_so_type": "I",
"so_type_code_description": "International"
},
{
"valid_so_type": "C",
"so_type_code_description": "Credit Type Orders"
},
{
"valid_so_type": "T",
"so_type_code_description": "Rottler Test"
},
{
"valid_so_type": "z",
"so_type_code_description": "next test"
}
]
}
]
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
334
335
336
337
338
339
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
334
335
336
337
338
339
# Sample LOOKUP
# Request
{
"lookupName": "POS.LOOKUP",
"file": "SOQUOTE",
"correls": "",
"fullRecords": false,
"filters": {},
"rangeStart": "1",
"rangeEnd": "100"
}
1
2
3
4
5
6
7
8
9
2
3
4
5
6
7
8
9
# Response
Sample Json
{
"fDicts": [
{
"conv": "MCU",
"dict_name": "id",
"display_name": "ID"
},
{
"conv": "",
"dict_name": "customer_name",
"display_name": "Customer Name"
},
{
"conv": "",
"dict_name": "status",
"display_name": "Status"
},
{
"conv": "D2-",
"dict_name": "date",
"display_name": "Date"
},
{
"conv": "",
"dict_name": "quoted_by",
"display_name": "Quoted By"
},
{
"conv": "MD2",
"dict_name": "quote_amount",
"display_name": "Quote Amount"
},
{
"conv": "",
"dict_name": "cost_method",
"valid_value_items": [
{
"valid_desc": "Markup Percent",
"valid_value": "M"
},
{
"valid_desc": "Price File",
"valid_value": "P"
}
],
"display_name": "Cost Method"
}
],
"data": [
{
"id": "1610",
"date": "01/20/2026",
"cost_method": "P",
"customer_name": "56, Inc.",
"quoted_by": "GREGB"
},
{
"id": "1609",
"date": "11/21/2025",
"cost_method": "P",
"customer_name": "56, Inc.",
"quoted_by": "GREGB"
},
{
"id": "1608",
"date": "11/21/2025",
"cost_method": "P",
"customer_name": "56, Inc.",
"quoted_by": "GREGB"
},
{
"id": "1607",
"date": "11/21/2025",
"cost_method": "P",
"customer_name": "56, Inc.",
"quoted_by": "GREGB"
},
{
"id": "1606",
"date": "11/21/2025",
"cost_method": "P",
"customer_name": "56, Inc.",
"quoted_by": "GREGB"
},
{
"id": "1605",
"date": "11/21/2025",
"cost_method": "P",
"customer_name": "56, Inc.",
"quoted_by": "GREGB"
},
{
"id": "1604",
"date": "11/20/2025",
"cost_method": "P",
"customer_name": "56, Inc.",
"quoted_by": "GREGB"
},
{
"id": "1603",
"date": "11/20/2025",
"cost_method": "P",
"customer_name": "56, Inc.",
"quoted_by": "GREGB"
},
{
"id": "1602",
"date": "11/20/2025",
"cost_method": "P",
"customer_name": "56, Inc.",
"quoted_by": "GREGB"
},
{
"id": "1601",
"date": "11/20/2025",
"cost_method": "P",
"customer_name": "56, Inc.",
"quoted_by": "GREGB"
},
{
"id": "1600",
"date": "11/20/2025",
"cost_method": "P",
"customer_name": "56, Inc.",
"quoted_by": "GREGB"
},
{
"id": "1599",
"date": "11/20/2025",
"cost_method": "P",
"customer_name": "56, Inc.",
"quoted_by": "GREGB"
},
{
"id": "1598",
"date": "11/20/2025",
"cost_method": "P",
"customer_name": "56, Inc.",
"quoted_by": "GREGB"
},
{
"id": "1597",
"date": "11/20/2025",
"cost_method": "P",
"customer_name": "56, Inc.",
"quoted_by": "GREGB"
},
{
"id": "1596",
"date": "11/20/2025",
"cost_method": "P",
"customer_name": "56, Inc.",
"quoted_by": "GREGB"
},
{
"id": "1595",
"date": "11/20/2025",
"cost_method": "P",
"customer_name": "56, Inc.",
"quoted_by": "GREGB"
},
{
"id": "1594",
"date": "11/14/2025",
"customer_name": "Evans Supplies",
"status": "N",
"quoted_by": "BILLB"
},
{
"id": "1593",
"date": "11/14/2025",
"customer_name": "Evans Supplies",
"status": "N",
"quoted_by": "BILLB"
},
{
"id": "1592",
"date": "10/28/2025",
"cost_method": "P",
"customer_name": "56, Inc.",
"quoted_by": "GREGB"
},
{
"id": "1591",
"date": "10/20/2025",
"cost_method": "P",
"customer_name": "56, Inc.",
"quoted_by": "GREGB"
},
{
"id": "1590",
"date": "10/16/2025",
"cost_method": "P",
"customer_name": "Evans Supplies",
"quoted_by": "WRIGHTM",
"quote_amount": "3000.00"
},
{
"id": "1589",
"date": "10/16/2025",
"cost_method": "P",
"customer_name": "Evans Supplies",
"quoted_by": "WRIGHTM"
},
{
"id": "1588",
"date": "09/23/2025",
"cost_method": "P",
"customer_name": "Evans Supplies"
},
{
"id": "1587",
"date": "08/26/2025",
"cost_method": "P",
"customer_name": "CAMBRIDGE PWR PROCESSING "
},
{
"id": "1586",
"date": "08/25/2025",
"cost_method": "P",
"customer_name": "Evans Supplies",
"quoted_by": "BILLB"
},
{
"id": "1585",
"date": "08/22/2025",
"cost_method": "P",
"customer_name": "Evans Supplies",
"quoted_by": "WRIGHTM"
},
{
"id": "1584",
"date": "08/12/2025",
"cost_method": "P",
"customer_name": "Evans Supplies",
"quoted_by": "WRIGHTM",
"quote_amount": "3000.00"
},
{
"id": "1583",
"date": "08/12/2025",
"cost_method": "P",
"customer_name": "Evans Supplies",
"quoted_by": "WRIGHTM"
},
{
"id": "1582",
"date": "08/12/2025",
"cost_method": "P",
"customer_name": "56, Inc.",
"quoted_by": "GREGB"
},
{
"id": "1581",
"date": "08/12/2025",
"cost_method": "P",
"customer_name": "Evans Supplies",
"quoted_by": "WRIGHTM",
"quote_amount": "3538.46"
},
{
"id": "1580",
"date": "08/12/2025",
"cost_method": "P",
"customer_name": "Evans Supplies",
"quoted_by": "WRIGHTM"
},
{
"id": "1579",
"date": "08/12/2025",
"cost_method": "P",
"customer_name": "Evans Supplies",
"quoted_by": "WRIGHTM",
"quote_amount": "3000.00"
},
{
"id": "1578",
"date": "08/04/2025",
"cost_method": "P",
"customer_name": "56, Inc.",
"quoted_by": "ALEXK"
},
{
"id": "1577",
"date": "08/04/2025",
"cost_method": "P",
"customer_name": "Evans Supplies",
"quote_amount": "50.00"
},
{
"id": "1576",
"date": "08/04/2025",
"cost_method": "P",
"customer_name": "Evans Supplies"
},
{
"id": "1575",
"date": "07/31/2025",
"cost_method": "P",
"customer_name": "Evans Supplies",
"quoted_by": "BILLB",
"quote_amount": "970000.00"
},
{
"id": "1574",
"date": "07/15/2025",
"cost_method": "P",
"customer_name": "Evans Supplies",
"quote_amount": "700.00"
},
{
"id": "1573",
"date": "07/14/2025",
"cost_method": "P",
"customer_name": "Evans Supplies",
"quoted_by": "MIKEC",
"quote_amount": "3000.00"
},
{
"id": "1572",
"date": "06/23/2025",
"cost_method": "M",
"customer_name": "Evans Supplies"
},
{
"id": "1571",
"date": "06/23/2025",
"cost_method": "P",
"customer_name": "ajc test",
"quoted_by": "WRIGHTM",
"quote_amount": "257.53"
},
{
"id": "1570",
"date": "06/23/2025",
"cost_method": "P"
},
{
"id": "1568",
"date": "06/10/2025",
"cost_method": "P",
"customer_name": "Evans Supplies",
"quoted_by": "BILLB"
},
{
"id": "1567",
"date": "06/09/2025",
"cost_method": "P",
"customer_name": "Christian Main Test",
"quoted_by": "CHRISTIANO"
},
{
"id": "1566",
"date": "06/06/2025",
"cost_method": "P",
"customer_name": "56, Inc.",
"quoted_by": "ALEXK"
},
{
"id": "1565",
"date": "06/06/2025",
"cost_method": "P",
"customer_name": "56, Inc.",
"quoted_by": "ALEXK"
},
{
"id": "1564",
"date": "06/06/2025",
"cost_method": "P",
"customer_name": "56, Inc.",
"quoted_by": "ALEXK"
},
{
"id": "1563",
"date": "06/04/2025",
"cost_method": "P",
"customer_name": "56, Inc."
},
{
"id": "1562",
"date": "06/04/2025",
"cost_method": "P",
"customer_name": "56, Inc."
},
{
"id": "1561",
"date": "06/04/2025",
"cost_method": "P",
"customer_name": "56, Inc."
},
{
"id": "1560",
"date": "06/03/2025",
"cost_method": "P",
"customer_name": "Evans Supplies",
"quoted_by": "BILLB"
},
{
"id": "1557",
"date": "05/22/2025",
"cost_method": "P",
"customer_name": "56, Inc."
},
{
"id": "1556",
"date": "05/22/2025",
"cost_method": "P",
"customer_name": "56, Inc.",
"quoted_by": "ALEXK"
},
{
"id": "1555",
"date": "05/22/2025",
"cost_method": "P",
"customer_name": "56, Inc.",
"quoted_by": "ALEXK"
},
{
"id": "1554",
"date": "05/16/2025",
"cost_method": "P",
"customer_name": "Christian Main Test",
"quoted_by": "CHRISTIANO"
},
{
"id": "1553",
"date": "05/16/2025",
"cost_method": "P",
"customer_name": "Christian Main Test",
"quoted_by": "CHRISTIANO"
},
{
"id": "1552",
"date": "05/15/2025",
"cost_method": "P",
"customer_name": "Christian Main Test",
"quoted_by": "CHRISTIANO"
},
{
"id": "1551",
"date": "05/14/2025",
"cost_method": "P",
"customer_name": "56, Inc.",
"status": "o",
"quoted_by": "ALEXK",
"quote_amount": "495.00"
},
{
"id": "1550",
"date": "05/09/2025",
"cost_method": "P",
"customer_name": "56, Inc.",
"quoted_by": "GREGB",
"quote_amount": "495.00"
},
{
"id": "1549",
"date": "05/08/2025",
"cost_method": "P",
"customer_name": "56, Inc.",
"quoted_by": "GREGB"
},
{
"id": "1548",
"date": "05/08/2025",
"cost_method": "P",
"customer_name": "56, Inc.",
"quoted_by": "GREGB",
"quote_amount": "495.00"
},
{
"id": "1547",
"date": "05/08/2025",
"cost_method": "P",
"customer_name": "56, Inc.",
"quoted_by": "ALEXK",
"quote_amount": "495.00"
},
{
"id": "1546",
"date": "05/08/2025",
"cost_method": "P",
"customer_name": "56, Inc.",
"quoted_by": "ALEXK",
"quote_amount": "495.00"
},
{
"id": "1545",
"date": "05/08/2025",
"cost_method": "P",
"customer_name": "56, Inc.",
"quoted_by": "ALEXK",
"quote_amount": "495.00"
},
{
"id": "1544",
"date": "04/29/2025",
"cost_method": "P",
"customer_name": "Atlantic Aero, Inc.",
"quote_amount": "2000.00"
},
{
"id": "1543",
"date": "04/29/2025",
"cost_method": "P",
"customer_name": "Evans Supplies",
"quoted_by": "andrew",
"quote_amount": "1650.00"
},
{
"id": "1542",
"date": "04/28/2025",
"cost_method": "P",
"customer_name": "Atlantic Aero, Inc.",
"quote_amount": "2000.00"
},
{
"id": "1541",
"date": "04/27/2025",
"cost_method": "P",
"customer_name": "Atlantic Aero, Inc.",
"quote_amount": "2892.92"
},
{
"id": "1540",
"date": "04/27/2025",
"cost_method": "P",
"customer_name": "Atlantic Aero, Inc.",
"quote_amount": "2000.00"
},
{
"id": "1539",
"date": "04/24/2025",
"cost_method": "P",
"customer_name": "56, Inc.",
"quoted_by": "GREGB"
},
{
"id": "1538",
"date": "04/24/2025",
"cost_method": "M",
"customer_name": "Christian Main Test",
"quoted_by": "CHRISTIANO"
},
{
"id": "1537",
"date": "04/24/2025",
"cost_method": "P",
"customer_name": "56, Inc.",
"quoted_by": "GREGB",
"quote_amount": "495.00"
},
{
"id": "1536",
"date": "04/23/2025",
"cost_method": "P",
"customer_name": "56, Inc.",
"quoted_by": "GREGB"
},
{
"id": "1535",
"date": "04/21/2025",
"cost_method": "P",
"customer_name": "Evans Supplies",
"quoted_by": "WRIGHTM"
},
{
"id": "1533",
"date": "04/18/2025",
"customer_name": "56, Inc.",
"quote_amount": "0.10"
},
{
"id": "1532",
"date": "04/17/2025",
"cost_method": "P",
"customer_name": "56, Inc.",
"quoted_by": "GREGB"
},
{
"id": "1531",
"date": "04/17/2025",
"cost_method": "P",
"customer_name": "56, Inc.",
"quoted_by": "GREGB"
},
{
"id": "1530",
"date": "04/17/2025",
"cost_method": "P",
"customer_name": "56, Inc.",
"quoted_by": "GREGB"
},
{
"id": "1529",
"date": "04/16/2025",
"cost_method": "M",
"customer_name": "56, Inc.",
"quoted_by": "CHRISTIANO"
},
{
"id": "1528",
"date": "04/16/2025",
"cost_method": "P",
"customer_name": "56, Inc.",
"quoted_by": "CHRISTIANO"
},
{
"id": "1534",
"date": "04/14/2025",
"customer_name": "56, Inc.",
"status": "N",
"quoted_by": "CHRISTIANO",
"quote_amount": "495.00"
},
{
"id": "1512",
"date": "04/14/2025",
"customer_name": "56, Inc.",
"status": "N",
"quoted_by": "CHRISTIANO",
"quote_amount": "495.00"
},
{
"id": "1511",
"date": "04/14/2025",
"customer_name": "56, Inc.",
"status": "N",
"quoted_by": "CHRISTIANO",
"quote_amount": "495.00"
},
{
"id": "1510",
"date": "04/14/2025",
"cost_method": "P",
"customer_name": "56, Inc.",
"quoted_by": "GREGB"
},
{
"id": "1507",
"date": "04/10/2025",
"customer_name": "56, Inc.",
"status": "N",
"quoted_by": "CHRISTIANO"
},
{
"id": "1506",
"date": "04/10/2025",
"customer_name": "56, Inc.",
"status": "N",
"quoted_by": "CHRISTIANO"
},
{
"id": "1505",
"date": "04/10/2025",
"cost_method": "P",
"customer_name": "Evans Supplies",
"quoted_by": "WRIGHTM",
"quote_amount": "3538.46"
},
{
"id": "1504",
"date": "04/10/2025",
"customer_name": "Christian Main Test",
"status": "N",
"quoted_by": "CHRISTIANO"
},
{
"id": "1503",
"date": "04/10/2025",
"cost_method": "P",
"customer_name": "56, Inc.",
"quoted_by": "GREGB"
},
{
"id": "1502",
"date": "04/08/2025",
"cost_method": "P",
"customer_name": "56, Inc.",
"quoted_by": "GREGB"
},
{
"id": "1501",
"date": "04/07/2025",
"cost_method": "P",
"customer_name": "56, Inc.",
"quoted_by": "GREGB",
"quote_amount": "495.00"
},
{
"id": "1500",
"date": "04/02/2025",
"customer_name": "56, Inc.",
"quoted_by": "GREGB"
},
{
"id": "1499",
"date": "04/02/2025",
"cost_method": "P",
"customer_name": "56, Inc.",
"quoted_by": "GREGB"
},
{
"id": "1498",
"date": "04/02/2025",
"cost_method": "P",
"customer_name": "56, Inc.",
"quoted_by": "GREGB"
},
{
"id": "1497",
"date": "04/02/2025",
"cost_method": "P",
"customer_name": "56, Inc.",
"quoted_by": "GREGB",
"quote_amount": "495.00"
},
{
"id": "1496",
"date": "04/02/2025",
"cost_method": "P",
"customer_name": "56, Inc.",
"quoted_by": "GREGB",
"quote_amount": "495.00"
},
{
"id": "1495",
"date": "04/02/2025",
"cost_method": "P",
"customer_name": "56, Inc.",
"quoted_by": "GREGB",
"quote_amount": "495.00"
},
{
"id": "1494",
"date": "04/02/2025",
"cost_method": "P",
"customer_name": "56, Inc.",
"quoted_by": "GREGB",
"quote_amount": "495.00"
},
{
"id": "1493",
"date": "04/02/2025",
"cost_method": "P",
"customer_name": "56, Inc.",
"quoted_by": "GREGB"
},
{
"id": "1492",
"date": "04/02/2025",
"cost_method": "P",
"customer_name": "56, Inc.",
"quoted_by": "GREGB"
},
{
"id": "1491",
"date": "04/02/2025",
"cost_method": "P",
"customer_name": "56, Inc.",
"quoted_by": "GREGB"
}
],
"total_records_found": "622"
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
334
335
336
337
338
339
340
341
342
343
344
345
346
347
348
349
350
351
352
353
354
355
356
357
358
359
360
361
362
363
364
365
366
367
368
369
370
371
372
373
374
375
376
377
378
379
380
381
382
383
384
385
386
387
388
389
390
391
392
393
394
395
396
397
398
399
400
401
402
403
404
405
406
407
408
409
410
411
412
413
414
415
416
417
418
419
420
421
422
423
424
425
426
427
428
429
430
431
432
433
434
435
436
437
438
439
440
441
442
443
444
445
446
447
448
449
450
451
452
453
454
455
456
457
458
459
460
461
462
463
464
465
466
467
468
469
470
471
472
473
474
475
476
477
478
479
480
481
482
483
484
485
486
487
488
489
490
491
492
493
494
495
496
497
498
499
500
501
502
503
504
505
506
507
508
509
510
511
512
513
514
515
516
517
518
519
520
521
522
523
524
525
526
527
528
529
530
531
532
533
534
535
536
537
538
539
540
541
542
543
544
545
546
547
548
549
550
551
552
553
554
555
556
557
558
559
560
561
562
563
564
565
566
567
568
569
570
571
572
573
574
575
576
577
578
579
580
581
582
583
584
585
586
587
588
589
590
591
592
593
594
595
596
597
598
599
600
601
602
603
604
605
606
607
608
609
610
611
612
613
614
615
616
617
618
619
620
621
622
623
624
625
626
627
628
629
630
631
632
633
634
635
636
637
638
639
640
641
642
643
644
645
646
647
648
649
650
651
652
653
654
655
656
657
658
659
660
661
662
663
664
665
666
667
668
669
670
671
672
673
674
675
676
677
678
679
680
681
682
683
684
685
686
687
688
689
690
691
692
693
694
695
696
697
698
699
700
701
702
703
704
705
706
707
708
709
710
711
712
713
714
715
716
717
718
719
720
721
722
723
724
725
726
727
728
729
730
731
732
733
734
735
736
737
738
739
740
741
742
743
744
745
746
747
748
749
750
751
752
753
754
755
756
757
758
759
760
761
762
763
764
765
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
334
335
336
337
338
339
340
341
342
343
344
345
346
347
348
349
350
351
352
353
354
355
356
357
358
359
360
361
362
363
364
365
366
367
368
369
370
371
372
373
374
375
376
377
378
379
380
381
382
383
384
385
386
387
388
389
390
391
392
393
394
395
396
397
398
399
400
401
402
403
404
405
406
407
408
409
410
411
412
413
414
415
416
417
418
419
420
421
422
423
424
425
426
427
428
429
430
431
432
433
434
435
436
437
438
439
440
441
442
443
444
445
446
447
448
449
450
451
452
453
454
455
456
457
458
459
460
461
462
463
464
465
466
467
468
469
470
471
472
473
474
475
476
477
478
479
480
481
482
483
484
485
486
487
488
489
490
491
492
493
494
495
496
497
498
499
500
501
502
503
504
505
506
507
508
509
510
511
512
513
514
515
516
517
518
519
520
521
522
523
524
525
526
527
528
529
530
531
532
533
534
535
536
537
538
539
540
541
542
543
544
545
546
547
548
549
550
551
552
553
554
555
556
557
558
559
560
561
562
563
564
565
566
567
568
569
570
571
572
573
574
575
576
577
578
579
580
581
582
583
584
585
586
587
588
589
590
591
592
593
594
595
596
597
598
599
600
601
602
603
604
605
606
607
608
609
610
611
612
613
614
615
616
617
618
619
620
621
622
623
624
625
626
627
628
629
630
631
632
633
634
635
636
637
638
639
640
641
642
643
644
645
646
647
648
649
650
651
652
653
654
655
656
657
658
659
660
661
662
663
664
665
666
667
668
669
670
671
672
673
674
675
676
677
678
679
680
681
682
683
684
685
686
687
688
689
690
691
692
693
694
695
696
697
698
699
700
701
702
703
704
705
706
707
708
709
710
711
712
713
714
715
716
717
718
719
720
721
722
723
724
725
726
727
728
729
730
731
732
733
734
735
736
737
738
739
740
741
742
743
744
745
746
747
748
749
750
751
752
753
754
755
756
757
758
759
760
761
762
763
764
765
# Displaying a Formsdef form from Validation Response
When PUTRECORD for the CASH file is called with validate_only = "Y" in the request metadata, or on PUTRECORD CASH for final submission, add a workflow_action to the metadata object in the response. This must contain the formId, formName. It can optionally include:
recordIdto force the form to use a provided record id when savingrecordto provide initial values for theoldRecordto be used, if the record already exists on file. Values inrecordwill be used as default values on the form when displayed.
The formsdef form provided must then be provided as a form when requested via a GETRECORD request against the FORMSDEF file.
# Validate Response Sample
Sample Json
{
"response": {
"status": "success",
"recordId": "",
"metaData": {
"workflow_action": {
"formId": "APPROVAL.REQ",
"recordId": "",
"fileName": "APPROVAL",
"title": "Please Request Approval",
"record": {
"type": "AR",
"request_date": "01-29-26",
"request_by": "alexk",
"li_items": [
{
"li": 1,
"li_id": "24223",
"li_amount": "39.60"
},
{
"li": 2,
"li_id": "24224",
"li_amount": "-100.00"
}
]
},
"type": "formsdef"
}
}
}
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
# Formsdef GETRECORD response
Request GETRECORD for FORMSDEF with id="APPROVAL.REQ"
field_items is a list of fields to display. These must be defined in FDICT for the file of the name specified in file_name. We will request this when displaying the form.
Sample Json
{
"total_records_found": "1",
"BlockSize": "50",
"formsdef_items": [
{
"form_id": "APPROVAL.REQ",
"enabled": "Y",
"file_name": "APPROVAL",
"field_items": [
{
"field": "REQUEST.DATE"
},
{
"field": "REQUEST.BY"
},
{
"field": "REASON"
}
],
"form_name": "Approval Request",
"module": "ACCOUNTING",
"process_type": "SAVE"
}
]
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
# Sample FDICT APPROVAL response
Sample Json
{
"total_records_found": "1",
"BlockSize": "50",
"fdict_items": [
{
"file_name": "APPROVAL",
"field_no_items": [
{
"field_no": "0",
"conv": "MCU",
"boolean": "N",
"dict_name": "APPROVAL.ID",
"desc_items": [
{
"desc": "Approval.Id"
}
],
"multi_line": "N",
"just": "R",
"ignore_change": "N",
"len": "13",
"reference_file": "APPROVAL",
"required": "N",
"web_validate": "N"
},
{
"field_no": "1",
"conv": "D2-",
"dict_name": "REQUEST.DATE",
"desc_items": [
{
"desc": "Request.Date"
}
],
"multi_line": "N",
"just": "R",
"len": "8"
},
{
"field_no": "2",
"conv": "MCU",
"dict_name": "REQUEST.BY",
"desc_items": [
{
"desc": "Request.By"
}
],
"multi_line": "N",
"just": "L",
"len": "25"
},
{
"field_no": "3",
"conv": "MCU",
"dict_name": "TYPE",
"desc_items": [
{
"desc": "Type"
}
],
"multi_line": "N",
"just": "L",
"len": "8"
},
{
"field_no": "4",
"conv": "MT",
"dict_name": "NOTES",
"desc_items": [
{
"desc": "Notes"
}
],
"multi_line": "N",
"just": "L",
"len": "25"
},
{
"field_no": "5",
"conv": "D2-",
"dict_name": "APPROVE.DATE",
"desc_items": [
{
"desc": "Approve.Date"
}
],
"just": "R",
"len": "8"
},
{
"field_no": "6",
"conv": "MCU",
"dict_name": "APPROVE.BY",
"desc_items": [
{
"desc": "Approve.By"
}
],
"just": "L",
"len": "25"
},
{
"field_no": "7",
"dict_name": "LI",
"desc_items": [
{
"desc": "Li"
}
],
"structure": "7ü8ü9",
"just": "R",
"len": "3"
},
{
"field_no": "8",
"control_field": "7",
"conv": "MCU",
"dict_name": "LI.ID",
"desc_items": [
{
"desc": "Li.Id"
}
],
"multi_line": "N",
"just": "R",
"len": "13",
"reference_file": "AR"
},
{
"field_no": "9",
"control_field": "7",
"conv": "MD2",
"dict_name": "LI.AMOUNT",
"desc_items": [
{
"desc": "Li.Amount"
}
],
"multi_line": "N",
"just": "R",
"len": "13"
},
{
"field_no": "10",
"dict_name": "REASON",
"desc_items": [
{
"desc": "Reason"
}
],
"just": "L",
"len": "25",
"required": "N",
"valid_value_items": [
{
"valid_value": "Reason 1"
},
{
"valid_value": "Reason 2"
},
{
"valid_value": "Reason 3"
}
]
}
],
"correl_field_no_items": [
{
"correl_field_no": "0",
"correl_desc": "Attachments",
"correl_dict_id": "ATTACHMENTS",
"correlative": "SUBR(\"ACE$GETATTACHMENTRECORDID\",\"APPROVAL\")",
"correl_just": "R",
"correl_len": "10",
"correl_type": "I"
},
{
"correl_field_no": "0",
"correl_desc": "Att.File.Name",
"corr_ctrl_fld": "ATTACHMENTS",
"correl_dict_id": "ATT.FILE.NAME",
"correlative": "SUBR(\"ACE$GETATTACHMENTFILENAME\",\"APPROVAL\")",
"correl_just": "L",
"correl_len": "30",
"correl_type": "I"
},
{
"correl_field_no": "0",
"correl_desc": "Att.Created.By",
"corr_ctrl_fld": "ATTACHMENTS",
"correl_conv": "MCU",
"correl_dict_id": "ATT.CREATED.BY",
"correlative": "SUBR(\"ACE$GETATTACHMENTCREATEDBY\",\"APPROVAL\")",
"correl_just": "L",
"correl_len": "15",
"correl_type": "I"
},
{
"correl_field_no": "0",
"correl_desc": "Att.Date",
"corr_ctrl_fld": "ATTACHMENTS",
"correl_conv": "D2-",
"correl_dict_id": "ATT.DATE",
"correlative": "SUBR(\"ACE$GETATTACHMENTDATECREATED\",\"APPROVAL\")",
"correl_just": "L",
"correl_len": "8",
"correl_type": "I"
},
{
"correl_field_no": "0",
"correl_desc": "Att.Time",
"corr_ctrl_fld": "ATTACHMENTS",
"correl_conv": "MT",
"correl_dict_id": "ATT.TIME",
"correlative": "SUBR(\"ACE$GETATTACHMENTTIMECREATED\",\"APPROVAL\")",
"correl_just": "L",
"correl_len": "5",
"correl_type": "I"
},
{
"correl_field_no": "0",
"correl_desc": "Att.Mime.Type",
"corr_ctrl_fld": "ATTACHMENTS",
"correl_dict_id": "ATT.MIME.TYPE",
"correlative": "SUBR(\"ACE$GETATTACHMENTMIMETYPE\",\"APPROVAL\")",
"correl_just": "L",
"correl_len": "30",
"correl_type": "I"
},
{
"correl_field_no": "0",
"correl_desc": "Amount",
"correl_conv": "MD2",
"correl_dict_id": "AMOUNT",
"correlative": "SUM(LI.AMOUNT)",
"correl_just": "R",
"correl_len": "13",
"correl_type": "I",
"correl_multi_li": "N"
}
],
"file_title": "Approvals file",
"lookup_name_items": [
{
"lookup_name": "PENDING.APPROVAL",
"lu_menu_caption": "List approvals pending approval",
"lu_enabled": "Y",
"lu_display_fld_items": [
{
"lu_display_fld": "APPROVAL.ID"
},
{
"lu_display_fld": "REQUEST.BY"
},
{
"lu_display_fld": "REQUEST.DATE"
},
{
"lu_display_fld": "NOTES"
},
{
"lu_display_fld": "AMOUNT"
}
],
"lu_compare_fld_items": [
{
"lu_compare_fld": "APPROVE.BY",
"lu_compare_oper": "Equal to",
"lu_compare_not": "N"
},
{
"lu_compare_fld": "APPROVE.DATE",
"lu_compare_oper": "Equal to"
}
],
"lu_list_caption": "List approvals pending approval",
"lu_std_product": "Y",
"lu_sort_field_items": [
{
"lu_sort_field": "REQUEST.DATE",
"lu_sort_seq": "Descending"
},
{
"lu_sort_field": "APPROVAL.ID",
"lu_sort_seq": "Ascending"
}
]
}
],
"validate_bp_items": [
{
"validate_bp": "P$VALIDATEAPPROVAL",
"validate_ver": "2",
"validate_type": "2"
}
],
"process_type_items": [
{
"process_type": "SAVE"
}
]
}
]
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
# Sample save PUTRECORD from FORMSDEF
Sample Json
{
"record": {
"type": "AR",
"request_date": "01-29-26",
"request_by": "alexk",
"li_items": [
{ "li": 1, "li_id": "24223", "li_amount": "39.60" },
{ "li": 2, "li_id": "24224", "li_amount": "-100.00" }
],
"reason": "Reason 1"
},
"oldRecord": {
"type": "AR",
"request_date": "01-29-26",
"request_by": "alexk",
"li_items": [
{ "li": 1, "li_id": "24223", "li_amount": "39.60" },
{ "li": 2, "li_id": "24224", "li_amount": "-100.00" }
]
},
"filename": "APPROVAL"
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
# Lookup Display Tabs in POS
Point of sale supports displaying an arbitrary number of lookup data tables as sections within point of sale after a customer is selected. These are shown after Parts, Quotes, Orders, Invoices, Receipt History, and Payment Methods On File.
This is defined in MRK.CONTROL as a new property called pos_section_lookups_items
MRK CONTROL JSON
[
{
"control_id": "MRK1",
"cg_location": "CG",
"auto_set_ship_date": "N",
"assign_invoice_(how)": "S",
"allocate_shipments": "Y",
"accounting_orders_lookup": "SO*ON.HOLD",
"accounting_orders_lookup_desc": "Orders on hold",
"alloc_multiple_locations": "Y",
"accounting_release_items": [
{
"accounting_release": "RON"
},
{
"accounting_release": "VERN"
},
{
"accounting_release": "CATHIEM"
},
{
"accounting_release": "BONNIE"
},
{
"accounting_release": "CHRISTIANO"
}
],
"allocation_sequence": "1",
"allow_po_creation": "Y",
"allow_customer_creation": "Y",
"allow_mixed_mode": "Y",
"apply_cm_to_open_order": "Y",
"assign_invoice_(when)": "S",
"assign_invoice_(with)": "L",
"auto_generate_ship": "N",
"auto_create_wo": "P",
"auto_create_sub-assembly_wo": "Y",
"auto_load_ship_qty": "Y",
"auto_process_rma_terms_document": "CUST",
"backorder_so": "ENTRY",
"breakout_tax": "N",
"cart_field_validation": "Y",
"commit_range": "999",
"fg_location": "FG",
"explode_phantoms": "Y",
"display_atp": "0",
"default_taxable_flag": "N",
"default_cust_terms": "AR",
"default_apply_overage_to_account": "N",
"customer_inquiry_lookup": "CUST*POS.CUST2",
"customer_inquiry_recently_viewed_lookup": "Y",
"default_image": "https://prodroverstorage.blob.core.windows.net/rover/icon-120x120-1.png",
"disable_downloading_statements": "N",
"disable_emailing_statements": "N",
"disable_updating_part_description": "N",
"display_inv": "0",
"display_credit_memos": "N",
"fet_account:": "000-0736F",
"fob_dest": "Irvine",
"filter_inactive_customers": "N",
"freight_acct#": "000-0930",
"misc_acct#": "TARIFF",
"log_serials": "Y",
"load_customer_notes": "Y",
"hide_pos_notes": "N",
"hide_load_customer_button": "N",
"hide_drafted_orders": "N",
"gppct_and_cost": "Y",
"gppct_cost_type": "Basis5",
"hide_parts_tab": "N",
"hide_order_buttons": "Y",
"hide_po_no": "N",
"hide_use_new_address": "N",
"hold_code_items": [
{
"hold_code": "C",
"hold_code_description": "Credit"
},
{
"hold_code": "E",
"hold_code_description": "Engineering HOLD LONG DES"
},
{
"hold_code": "W",
"hold_code_description": "Web Hold"
}
],
"manually_load_orders": "N",
"manually_load_invoices": "N",
"sales_acct#": "000-1000",
"required_date_offset": "1",
"pos_price_strategy": "P",
"order_information_precedes_create_order": "N",
"order_header_shipto_display": "Top",
"pos_allow_partial_shipments": "Y",
"pos_allow_non_stock_parts": "Y",
"pos_allow_cash_deposit": "Y",
"part_cart_update_mode": "Y",
"pos_allow_coupons": "Y",
"pos_allow_payout": "Y",
"pos_allow_shipto_override": "N",
"pos_allow_refund": "Y",
"pos_maintain_cart_sort": "Y",
"pos_force_same_part_qty_increment": "N",
"pos_clear_category_on_search": "Y",
"pos_cc_pin_pad": "T",
"pos_auto_validate": "Y",
"pos_customer_orders_lookup": "SO*POS.CUST.OPEN",
"pos_cust_soquote_lookup": "SOQUOTE*POS.CUST.LOOKUP",
"pos_collapse_part_option_groups": "Y",
"pos_customer_invoices_lookup": "AR*POS.CUSTOMER",
"pos_disable_check_payout": "Y",
"pos_extra_info_items": [
{
"pos_extra_info": "15"
},
{
"pos_extra_info": "7"
},
{
"pos_extra_info": "10"
},
{
"pos_extra_info": "9"
}
],
"pos_host_receipt_print": "Y",
"pos_hide_invoices_ar_kpi": "N",
"pos_lazy_load_shiptos": "N",
"pos_inv_lookups_items": [
{
"pos_inv_lookups": "SO*PART.ALL",
"inv_lookup_desc": "SO PART"
},
{
"pos_inv_lookups": "FORECAST*ALL",
"inv_lookup_desc": "Forecast Listing"
},
{
"pos_inv_lookups": "PO*PARTS.OPEN",
"inv_lookup_desc": "Lookup Open POs for a Part Number"
},
{
"pos_inv_lookups": "RMA*PARTS.OPEN",
"inv_lookup_desc": "Open Items for a Part Number Lookup"
},
{
"pos_inv_lookups": "IT*PART.NUMBER",
"inv_lookup_desc": "Part Number Lookup"
},
{
"pos_inv_lookups": "SHIP*Open Shipments",
"inv_lookup_desc": "List All Un-Confirmed Shipments"
},
{
"pos_inv_lookups": "AR*HOLD.LOOKUP",
"inv_lookup_desc": "Lookup Open Items on Hold"
},
{
"pos_inv_lookups": "ARR*CUST.OPEN",
"inv_lookup_desc": "Open ARR Listing by Customer"
},
{
"pos_inv_lookups": "PRICE*STD.PRICE",
"inv_lookup_desc": "Standard Price"
},
{
"pos_inv_lookups": "SO*PART.ALL",
"inv_lookup_desc": "Part Number Lookup for All Orders"
}
],
"pos_parts_lookup": "PARTS*POS.PARTS",
"pos_order_code_items": [
{
"pos_order_code": "A",
"default_selection": "Y",
"pos_order_desc": "Ship",
"so_type_code": "C",
"ship_via_code": "03"
},
{
"pos_order_code": "B",
"default_selection": "N",
"pos_order_desc": "Will Call",
"so_type_code": "C",
"ship_via_code": "UPS BLUE"
},
{
"pos_order_code": "C",
"default_selection": "N",
"pos_order_desc": "Delivery",
"so_type_code": "D",
"ship_via_code": "02",
"signature_required": "Y"
},
{
"pos_order_code": "D",
"pos_order_desc": "Test",
"so_type_code": "C",
"ship_via_code": "UPS Worldwide Expedited"
}
],
"pos_part_status_items": [
{
"pos_part_status": "A"
},
{
"pos_part_status": "C"
},
{
"pos_part_status": "P"
}
],
"pos_partial_ship_field_items": [
{
"pos_partial_ship_field": "46"
},
{
"pos_partial_ship_field": "101"
},
{
"pos_partial_ship_field": "104"
},
{
"pos_partial_ship_field": "201"
}
],
"prompt_on_price_override": "Y",
"post_invoice_on_ship": "Y",
"pos_show_pay_terms": "Y",
"pos_show_book_date": "N",
"pos_require_price_change_reason": "N",
"pos_require_entry_user_authentication": "N",
"pos_register_selection_mode": "U",
"pos_require_ship_signature": "Y",
"pos_rma_refund": "N",
"pos_section_lookups_items": [
{
"pos_section_lookups": "SO*POS.CUST.OPEN",
"section_lookup_desc": "POS open orders per customer"
},
{
"pos_section_lookups": "SO*POS.OPEN.ALL",
"section_lookup_desc": "POS all open orders"
}
],
"pos_show_freight_amount": "Y",
"pos_show_edit_order": "Y",
"pos_show_category_filter": "Y",
"pos_show_order_status": "N",
"pos_show_keyword_search": "Y",
"pos_show_invoice_print": "Y",
"pos_show_order_confirmation_page": "N",
"pos_show_opp_tab": "Y",
"pos_show_orders_tab": "Y",
"pos_show_part_cost_column": "Y",
"pos_show_tax_codes": "Y",
"pos_show_ship_via": "Y",
"pos_show_sales_rep": "Y",
"pos_show_ship_id": "Y",
"pos_terms_require_payment": "Y",
"pos_skip_calc_tax": "Y",
"pos_soquote_lookup": "SOQUOTE*POS.LOOKUP",
"prohibit_open_po_shipments": "N",
"require_customer_parts_search": "N",
"sched_days": "30",
"schedule_horizon": "999",
"update_atp": "N",
"search_using_parts": "N",
"show_pick_ticket_print": "Y",
"skip_close_out_report": "Y",
"show_soquote_tab": "Y",
"suppress_invoice_parts": "Y",
"tariff_pct": "10.00",
"type_items": [
{
"type": "VISA",
"rma_receipt_location": "MRB",
"rma_cg_location": "CG",
"account_number": "VISA-ACCR",
"rma_freight_account": "000-0930",
"rma_credit": "Y",
"rma_sales_account": "000-0900",
"rma_type_description": "Warranty Repair",
"wo_type": "WR"
},
{
"type": "MC",
"rma_receipt_location": "MRB",
"rma_cg_location": "CG",
"account_number": "MC-ACCR",
"rma_freight_account": "000-0940",
"rma_sales_account": "000-0930",
"rma_type_description": "Billable Repair",
"wo_type": "BR"
},
{
"type": "DEFAULT",
"rma_receipt_location": "SCRAP",
"rma_cg_location": "CG",
"account_number": "000-0104",
"rma_freight_account": "000-0940",
"rma_credit": "Y",
"rma_sales_account": "000-0930",
"rma_type_description": "Scrap & Credit"
},
{
"type": "DISC",
"account_number": "000-0104"
},
{
"type": "AMEX",
"account_number": "000-0104"
}
],
"use_lookup_for_recently_viewed": "N",
"use_gm_pct": "Y",
"valid_so_type_items": [
{
"valid_so_type": "R",
"so_type_code_description": "Return"
},
{
"valid_so_type": "W",
"so_type_code_description": "Wholesale"
},
{
"valid_so_type": "D",
"so_type_code_description": "Domestic"
},
{
"valid_so_type": "I",
"so_type_code_description": "International"
},
{
"valid_so_type": "C",
"so_type_code_description": "Credit Type Orders"
},
{
"valid_so_type": "T",
"so_type_code_description": "Rottler Test"
},
{
"valid_so_type": "z",
"so_type_code_description": "next test"
}
]
}
]
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
334
335
336
337
338
339
340
341
342
343
344
345
346
347
348
349
350
351
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
334
335
336
337
338
339
340
341
342
343
344
345
346
347
348
349
350
351
# Sample CASH Putrecord Response
A formsdef response can also be displayed when payment is submitted, not only on validate. The only difference in request sent to PUTRECORD is the metaData property validate_only will not be set to "Y".
Sample response
{
"response": {
"status": "success",
"recordId": "",
"metaData": {
"workflow_action": {
"formId": "APPROVAL.REQ",
"recordId": "",
"fileName": "APPROVAL",
"title": "Please Request Approval",
"record": {
"type": "AR",
"request_date": "02-05-26",
"request_by": "alexk",
"li_items": [
{
"li": 1,
"li_id": "24223",
"li_amount": "39.60"
},
{
"li": 2,
"li_id": "24224",
"li_amount": "-100.00"
}
]
},
"type": "formsdef"
}
}
}
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
# Display Pending Approval Link in Accounting
Custom cards are governed by a new property acct_card_lookups_items in the ACCT.CONTROL response. These have three properties
acct_card_lookups- Lookup to fetch to drive card title and data (currently data not shown)card_lookup- The lookup name for the lookup used to display the data table shown when the card is selectedcard_action- The name of a formsdef form to be displayed, using the data from the lookup data table, when a row is clicked. This formsdef form must have a module of "ACCOUNTING"
# Sample ACCT.CONTROL
Sample Json
[
{
"control_id": "ACCT",
"a": {
"r_col_1_days": "30",
"p_col_1_days": "30",
"p_activity_days": "999",
"p_col_1_heading": "....Current",
"p_col_2_days": "60",
"p_col_2_heading": "...31-to-60",
"p_col_3_days": "90",
"p_col_3_heading": "...61-to-90",
"p_col_4_days": "9999",
"p_col_4_heading": "91+",
"r_col_1_heading": "....Current",
"r_col_2_days": "60",
"r_col_2_heading": "31 to 60",
"r_col_3_days": "90",
"r_col_3_heading": "61 to 90",
"r_col_4_days": "120",
"r_col_4_heading": "91 to 120",
"r_col_5_days": "121",
"r_col_5heading": "121+ Days"
},
"1099flg": "Y",
"ar_aging_method": "Invoice Date",
"ap_aging_method": "Invoice Date",
"activity_days": "9999",
"acct_card_lookups_items": [
{
"acct_card_lookups": "APPROVAL*PENDING.APPROVAL",
"card_lookup": "APPROVAL*PENDING.APPROVAL",
"card_action": "APPROVAL.E"
}
],
"app_vendor": "Y",
"commission_calculation": "P",
"comm_pay_account": "000-0724",
"comm_expense_account": "400-1141",
"collection_status_items": [
{
"collection_status": "1",
"status_desc": "Collections"
},
{
"collection_status": "2",
"status_desc": "Priority"
}
],
"update_sales": "Y",
"update_commissions": "Y",
"create_commission_accrual_records": "N",
"days_ar_history": "365",
"g": {
"l_account_number_items": [
{
"g": {
"l_account_number": "11-1101-1100"
},
"bank_account": "139957393333333",
"bank_name": "Wells Fargo"
},
{
"g": {
"l_account_number": "000-0105"
},
"bank_account": "135135",
"bank_name": "Southern Calif Bank"
}
]
},
"vendor_types_items": [
{
"vendor_types": "CATHIEM"
},
{
"vendor_types": "JENM"
},
{
"vendor_types": "NICOLEG"
}
]
}
]
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
# Sample Lookup
# Request
Sample Json
{
"lookupName": "PENDING.APPROVAL",
"file": "APPROVAL",
"parameters": {},
"fullRecords": true,
"filters": {},
"rangeStart": "1",
"rangeEnd": "100"
}
1
2
3
4
5
6
7
8
9
2
3
4
5
6
7
8
9
# Response
Sample Json
{
"fDicts": [
{
"conv": "MCU",
"dict_name": "approval_id",
"display_name": "Approval Id"
},
{
"conv": "MCU",
"dict_name": "request_by",
"display_name": "Request By"
},
{
"conv": "D2-",
"dict_name": "request_date",
"display_name": "Request Date"
},
{
"conv": "MT",
"dict_name": "notes",
"display_name": "Notes"
},
{
"conv": "MD2",
"dict_name": "amount",
"display_name": "Amount"
}
],
"data": [
{
"approval_id": "38",
"amount": "-60.40",
"request_date": "01/29/2026",
"request_by": "ALEXK",
"reason": "Reason 1",
"li_items": [
{
"li": "1",
"li_id": "24223",
"li_amount": "39.60"
},
{
"li": "2",
"li_id": "24224",
"li_amount": "-100.00"
}
],
"type": "AR"
},
{
"approval_id": "25",
"amount": "3.96",
"request_date": "01/28/2026",
"request_by": "ALEXK",
"reason": "Reason 2",
"li_items": [
{
"li": "1",
"li_id": "23948",
"li_amount": "53.46"
},
{
"li": "2",
"li_id": "23919",
"li_amount": "-49.50"
}
],
"type": "AR"
},
{
"approval_id": "26",
"amount": "-216.14",
"request_date": "01/28/2026",
"request_by": "ALEXK",
"reason": "Reason 1",
"li_items": [
{
"li": "1",
"li_id": "23932",
"li_amount": "-310.50"
},
{
"li": "2",
"li_id": "23949",
"li_amount": "94.36"
}
],
"type": "AR"
},
{
"approval_id": "27",
"amount": "-685.64",
"request_date": "01/28/2026",
"request_by": "ALEXK",
"reason": "Reason 3",
"li_items": [
{
"li": "1",
"li_id": "23963",
"li_amount": "-839.83"
},
{
"li": "2",
"li_id": "23955",
"li_amount": "20.00"
},
{
"li": "3",
"li_id": "23954",
"li_amount": "134.19"
}
],
"type": "AR"
},
{
"approval_id": "28",
"amount": "-293.94",
"request_date": "01/28/2026",
"request_by": "ALEXK",
"reason": "Reason 1",
"li_items": [
{
"li": "1",
"li_id": "24161",
"li_amount": "-383.04"
},
{
"li": "2",
"li_id": "24251",
"li_amount": "44.55"
},
{
"li": "3",
"li_id": "24249",
"li_amount": "44.55"
}
],
"type": "AR"
},
{
"approval_id": "29",
"amount": "-167.94",
"request_date": "01/28/2026",
"request_by": "ALEXK",
"reason": "Reason 1",
"li_items": [
{
"li": "1",
"li_id": "24163",
"li_amount": "-257.04"
},
{
"li": "2",
"li_id": "24251",
"li_amount": "44.55"
},
{
"li": "3",
"li_id": "24249",
"li_amount": "44.55"
}
],
"type": "AR"
},
{
"approval_id": "30",
"amount": "-167.94",
"request_date": "01/28/2026",
"request_by": "ALEXK",
"reason": "Reason 2",
"li_items": [
{
"li": "1",
"li_id": "24163",
"li_amount": "-257.04"
},
{
"li": "2",
"li_id": "24251",
"li_amount": "44.55"
},
{
"li": "3",
"li_id": "24249",
"li_amount": "44.55"
}
],
"type": "AR"
},
{
"approval_id": "31",
"amount": "285.95",
"request_date": "01/28/2026",
"request_by": "ALEXK",
"reason": "Reason 2",
"li_items": [
{
"li": "1",
"li_id": "24224",
"li_amount": "-100.00"
},
{
"li": "2",
"li_id": "24205",
"li_amount": "296.85"
},
{
"li": "3",
"li_id": "24254",
"li_amount": "44.55"
},
{
"li": "4",
"li_id": "24249",
"li_amount": "44.55"
}
],
"type": "AR"
},
{
"approval_id": "32",
"amount": "-10.90",
"request_date": "01/28/2026",
"request_by": "ALEXK",
"reason": "Reason 3",
"li_items": [
{
"li": "1",
"li_id": "24224",
"li_amount": "-100.00"
},
{
"li": "2",
"li_id": "24244",
"li_amount": "44.55"
},
{
"li": "3",
"li_id": "24252",
"li_amount": "44.55"
}
],
"type": "AR"
},
{
"approval_id": "33",
"amount": "-10.90",
"request_date": "01/28/2026",
"request_by": "ALEXK",
"reason": "Reason 1",
"li_items": [
{
"li": "1",
"li_id": "24224",
"li_amount": "-100.00"
},
{
"li": "2",
"li_id": "24244",
"li_amount": "44.55"
},
{
"li": "3",
"li_id": "24252",
"li_amount": "44.55"
}
],
"type": "AR"
},
{
"approval_id": "34",
"amount": "-10.90",
"request_date": "01/28/2026",
"request_by": "ALEXK",
"reason": "Reason 1",
"li_items": [
{
"li": "1",
"li_id": "24222",
"li_amount": "44.55"
},
{
"li": "2",
"li_id": "24224",
"li_amount": "-100.00"
},
{
"li": "3",
"li_id": "24244",
"li_amount": "44.55"
}
],
"type": "AR"
}
],
"total_records_found": "11"
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
# Sample Formsdef
Sample Json
{
"total_records_found": "1",
"BlockSize": "50",
"formsdef_items": [
{
"form_id": "APPROVAL.E",
"enabled": "Y",
"file_name": "APPROVAL",
"field_items": [
{
"field": "APPROVAL.ID",
"read_only": "Y"
},
{
"field": "REQUEST.DATE",
"read_only": "Y"
},
{
"field": "REQUEST.BY",
"read_only": "Y"
},
{
"field": "AMOUNT",
"read_only": "1"
},
{
"field": "APPROVE.DATE",
"default_val": "@SD"
},
{
"field": "APPROVE.BY",
"default_val": "@USER"
},
{
"field": "NOTES"
},
{
"field": "LI",
"read_only": "Y",
"hidden": "N",
"validate": "N"
},
{
"field": "LI.ID",
"read_only": "Y",
"hidden": "N",
"validate": "N"
},
{
"field": "LI.AMOUNT",
"read_only": "Y"
}
],
"form_name": "Approval submission",
"module": "ACCOUNTING",
"process_type": "SAVE"
}
]
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
