# Rover Inventory

Read Time: 3 minute(s)

# Inventory Display Lookups

INV.CONTROL response JSON format to show additional lookup tables in the Inventory Parts module.

INV.CONTROL example response
{
  "inv_lookup_items": [
    {
      "inv_lookup": "QUOTE*PART",
      "inv_lookup_desc": "Parts on Quote"
    },
    {
      "inv_lookup": "INV*PART",
      "inv_lookup_desc": "Active Parts"
    }
  ]
}
1
2
3
4
5
6
7
8
9
10
11
12

Related Parts in Rover Business Suite is based on two host side files:

  • PARTOPTIONGROUP
  • PARTRELATION

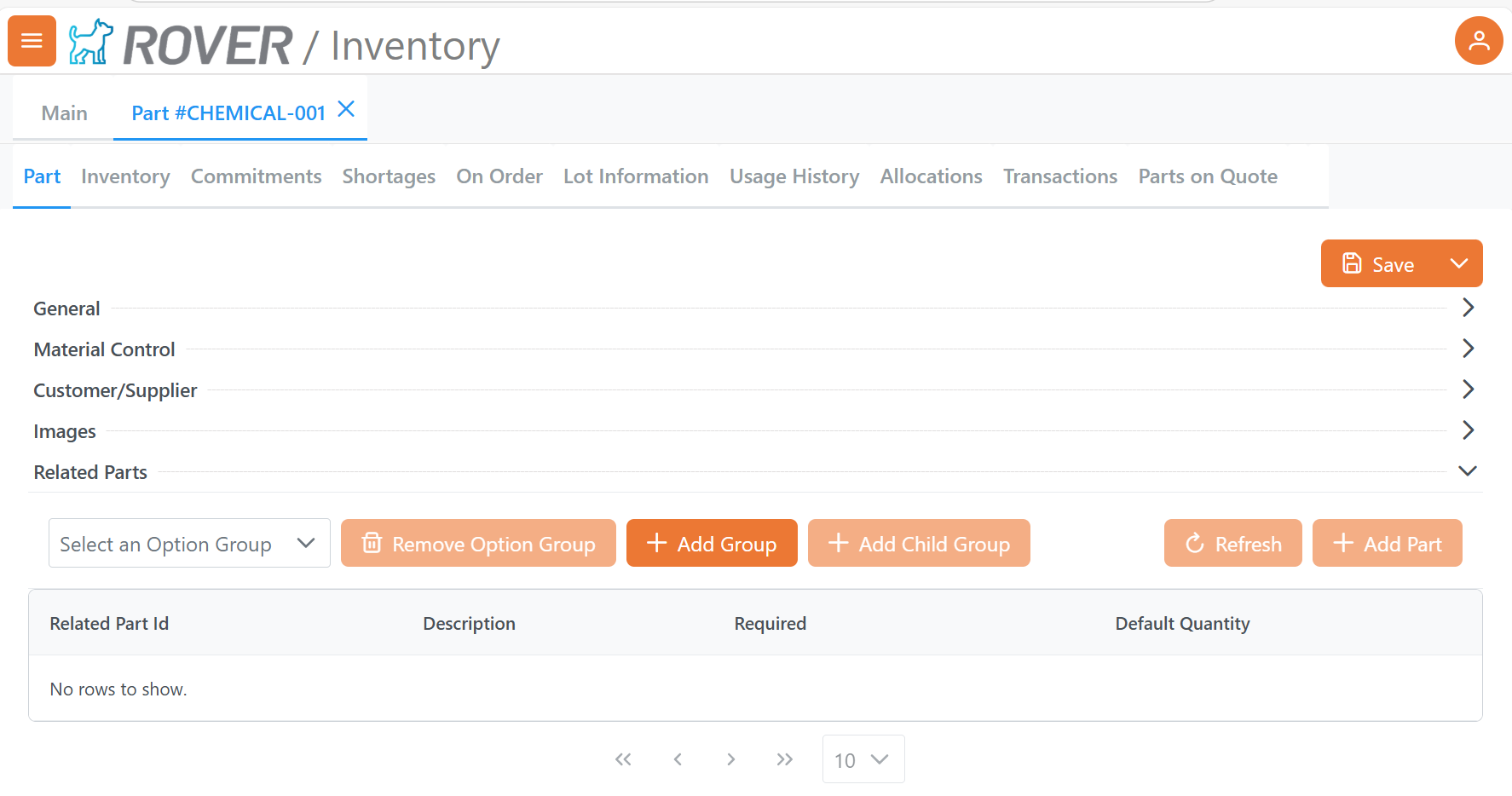

Visibility of the "Related Parts" section of Part Detail within the Inventory Module is controlled by a check of the FDICT PARTRELATION response.

RelatedPartsSection

FDICT PARTRELATON Example
{
    "total_records_found": "1",
    "BlockSize": "50",
    "fdict_items": [
        {
            "file_name": "PARTRELATION",
            "field_no_items": [
                {
                    "field_no": "0",
                    "conv": "MCU",
                    "dict_name": "ID",
                    "desc_items": [
                        {
                            "desc": "Id"
                        }
                    ],
                    "multi_line": "N",
                    "just": "L",
                    "len": "6",
                    "reference_file": "PARTRELATION",
                    "required": "N"
                },
                {
                    "field_no": "1",
                    "conv": "MCU",
                    "dict_name": "PART.NO",
                    "desc_items": [
                        {
                            "desc": "Part.No"
                        }
                    ],
                    "just": "L",
                    "index": "Y",
                    "len": "20",
                    "reference_file": "PARTS"
                },
                {
                    "field_no": "2",
                    "conv": "MCU",
                    "dict_name": "RELATED.PART.NO",
                    "desc_items": [
                        {
                            "desc": "Related.Part.No"
                        }
                    ],
                    "multi_line": "N",
                    "just": "L",
                    "index": "Y",
                    "len": "20",
                    "reference_file": "PARTS",
                    "required": "N"
                },
                {
                    "field_no": "3",
                    "dict_name": "OPTION.GROUP.ID",
                    "desc_items": [
                        {
                            "desc": "Option.Group.Id"
                        }
                    ],
                    "multi_line": "N",
                    "just": "L",
                    "index": "Y",
                    "len": "5",
                    "required": "N",
                    "valid_value_items": [
                        {
                            "valid_value": "1"
                        },
                        {
                            "valid_value": "2"
                        },
                        {
                            "valid_value": "3"
                        },
                        {
                            "valid_value": "4"
                        },
                        {
                            "valid_value": "5"
                        },
                        {
                            "valid_value": "6"
                        },
                        {
                            "valid_value": "7"
                        },
                        {
                            "valid_value": "8"
                        },
                        {
                            "valid_value": "9"
                        },
                        {
                            "valid_value": "10"
                        },
                        {
                            "valid_value": "123"
                        }
                    ]
                },
                {
                    "field_no": "4",
                    "dict_name": "REQUIRED",
                    "desc_items": [
                        {
                            "desc": "Required"
                        }
                    ],
                    "multi_line": "N",
                    "just": "L",
                    "len": "1"
                },
                {
                    "field_no": "5",
                    "conv": "MD2",
                    "dict_name": "DEFAULT.QTY",
                    "desc_items": [
                        {
                            "desc": "Default.Qty"
                        }
                    ],
                    "multi_line": "N",
                    "just": "R",
                    "len": "12",
                    "required": "N"
                }
            ],
            "correl_field_no_items": [
                {
                    "correl_field_no": "0",
                    "correl_desc": "Attachments",
                    "correl_dict_id": "ATTACHMENTS",
                    "correlative": "SUBR(\"ACE$GETATTACHMENTRECORDID\",\"PARTRELATION\")",
                    "correl_just": "R",
                    "correl_index": "Y",
                    "correl_len": "10",
                    "correl_rw_ok": "Y",
                    "correl_multi_li": "Y",
                    "correl_type": "I"
                },
                {
                    "correl_field_no": "0",
                    "correl_desc": "Part.Optiongrp",
                    "correl_dict_id": "PART.OPTIONGRP",
                    "correlative": "F3:\"*\":F1",
                    "correl_just": "L",
                    "correl_index": "Y",
                    "correl_len": "10",
                    "correl_rw_ok": "Y",
                    "correl_multi_li": "N",
                    "correl_type": "I"
                },
                {
                    "correl_field_no": "2",
                    "correl_desc": "Related.Desc1",
                    "correl_dict_id": "RELATED.DESC1",
                    "correlative": "TPARTS;X;;1",
                    "correl_just": "L",
                    "correl_len": "25",
                    "correl_rw_ok": "Y"
                }
            ]
        }
    ]
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166

# Option Groups

Option Groups are exposed via the OPTIONGROUPS.CONTROL response. There is currently no web based facility for management of option groups.

Example OPTIONGROUPS.CONTROL response ```json { "control_id": "OPTIONGROUPS", "option_group_id_items": [ { "option_group_id": "1", "option_group_description": "Related Parts" }, { "option_group_id": "2", "option_group_description": "Also Purchased" } ] } ```

# PARTOPTIONGROUPS

GETRECORD/PUTRECORD requests are made against the PARTOPTIONGROUP file to retrieve and update the relationship between PARTS records and defined Option Groups.

PARTOPTIONGROUP response example
{
    "partoptiongroup_items": [
        {
            "id": "110",
            "part_no": "CHEMICAL-001",
            "optiongroup_id": "2",
            "req_selection": "N",
            "track_relation": "N",
            "opt_grp_desc": "Also Purchased"
        },
        {
            "id": "111",
            "part_no": "CHEMICAL-001",
            "optiongroup_id": "5",
            "parent_id": "110",
            "req_selection": "N",
            "track_relation": "N",
            "opt_grp_desc": "Option Group 5"
        },
        {
            "id": "68",
            "part_no": "CHEMICAL-001",
            "optiongroup_id": "1",
            "req_selection": "Y",
            "track_relation": "Y",
            "opt_grp_desc": "Related Parts"
        }
    ],
    "total_records_found": "3",
    "blockSize": "50"
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31

Note: Nested relationships are supported by the parent_id property in the response.

# PARTRELATION

GETRECORD/PUTRECORD requests are mad against the PARTRELATION file to retrieve and update the parts associated with a parent parts.

PARTRELATION response example
{
    "total_records_found": "1",
    "BlockSize": "50",
    "partrelation_items": [
        {
            "id": "82",
            "default_qty": "10.00",
            "part_no": "CHEMICAL-001",
            "option_group_id": "2",
            "related_part_no": "CAP-10",
            "related_desc1": "Cap for model 10 inch S51 wheel - ",
            "required": "Y"
        }
    ]
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
